Transformer Capacity Characteristic Tester
A comprehensive 4-in-1 transformer test equipment combining transformer capacity testing, loss parameter analysis, harmonic analysis, and oscilloscope functionality.
Product Overview

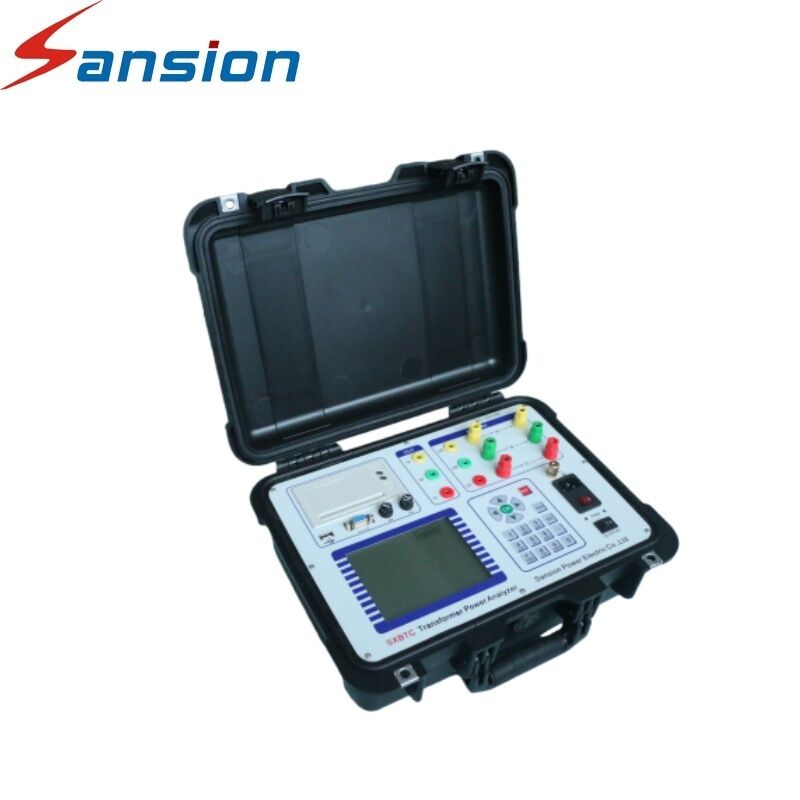

The SXBTC Transformer Capacity and Characteristic Tester delivers 100% accuracy in testing various transformers for capacity, no-load current, no-load loss, short circuit loss, impedance voltage, and power frequency parameters. Also known as Transformer Iron & Copper Loss Tester or Transformer Load/No-Load Tester.
Key Features
- Measure capacity of all distribution transformers passively, safely, and accurately
- Built-in power source with 500-transformer testing capacity per charge
- No external three-phase power source required for capacity and short circuit loss testing
- Comprehensive testing of no-load current, no-load loss, short circuit voltage, and short circuit loss
- Automatic waveform distortion, temperature, voltage, and current correction
- Harmonic content and total harmonic distortion measurement
- Vector analysis with diagram display
- Oscilloscope functionality for electric parameter waveform display
- 750V maximum voltage measuring range
- 20kVA to 100,000kVA capacity measuring range
- High-brightness LCD screen with built-in thermal printer
- 20 preset parameter groups and 200 test result storage capacity
- Full current load testing for transformers up to 1000kVA
- Real-time clock for automatic test date recording
Technical Specifications
| Active Mode |
Voltage: 0-10V, Current: 0-10A |
| Passive Mode |
Voltage: 0-800V, Current: 0-100A (auto-ranging) |
| Precision |
Voltage: ±0.2%, Current: ±0.5%, Power: ±0.5% (CosΦ>0.2), ±1.0% (0.02 |
| Working Temperature |
-10°C to +40°C |
| Charging Source |
AC 160V-260V |
| Insulation |
≥100MΩ insulation resistance, 2kV power frequency withstand voltage |
| Standard Compliance |
IEC270 |
Product Images
Manufacturer Profile
Sansion Power Electric, established in 2005, brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Serving power electric, railroad, energy conservation, water conservancy, petrochemical, and aerospace industries with ISO9001 certified quality systems and international standards compliance.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
Products are made to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days.
Q3: Is the quality guaranteed?
We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We provide free consulting service, one-year warranty, and comprehensive support through email, video calls, and on-site technical assistance to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products are successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries worldwide.
