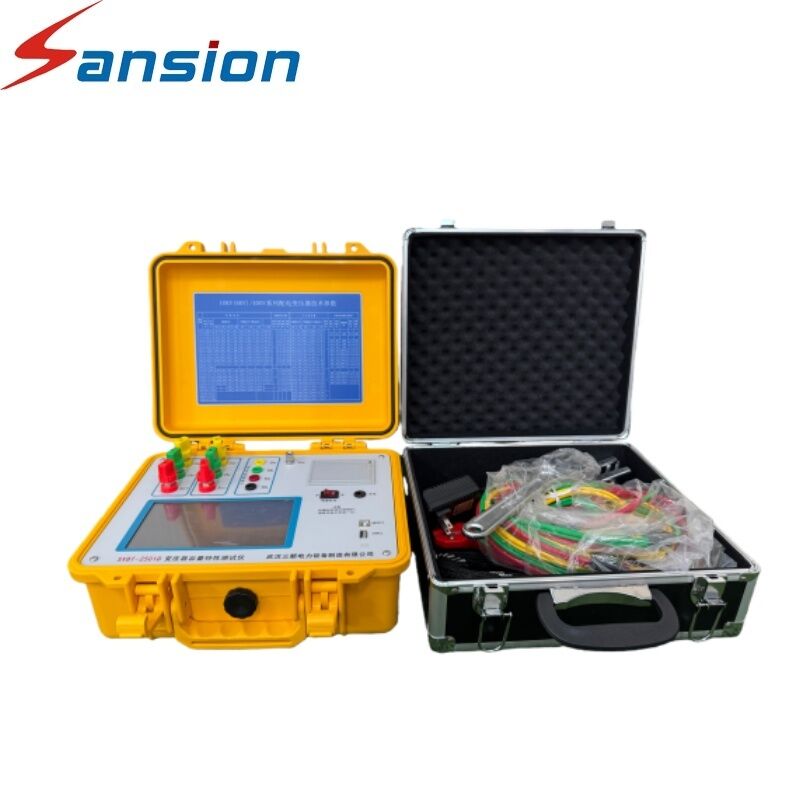

Transformer No-Load and Capacity Tester Transformer Characteristic Analyzer
This multifunctional measuring instrument combines the capabilities of both a transformer characteristic tester and transformer characteristic parameter tester. It performs comprehensive power frequency parameter measurements including capacity, type, no-load current, no-load loss, load loss, and impedance voltage.
Key Features
- Custom-built for 10kV distribution transformers with comprehensive testing performance
- Supports energy efficiency classification for oil-immersed (S22, SH25) and dry-type (SCB18, SCBH19) transformers
- Advanced harmonic analysis with waveform and histogram visualization
- 6-channel synchronous AC sampling and digital signal processing for high measurement precision
- Integrated lithium battery with 3-phase sine wave inverter power (soft start/stop function)
- Dual power modes: lithium battery or 220V AC charging with smart charging control
- Large LCD screen with Chinese UI displaying multiple parameters simultaneously
- Data handling: 200 local records, USB export (Word format) and thermal printing
Technical Specifications
| Standard |
IEC270 |
| Active Mode Voltage Range |
AC 50V～850V |
| Active Mode Current Range |
AC 0.5A～100A |
| Passive Mode Voltage Range |
AC 50V～850V |
| Passive Mode Current Range |
AC 0.5A～100A |
| Voltage Precision |
±0.2% |
| Current Precision |
±0.2% |
| Power Precision |
±0.2% |
| Working Temperature |
-10ºC ~ +40ºC |
| Weight |
5kg |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace, and other fields.
Our facility includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and employs over 80 staff including 20 technical engineers. We maintain ISO9001 quality system certification and all products strictly conform to international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
We manufacture to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We use imported components extensively and conduct three quality inspections before shipment. Export products are uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We offer free consulting service, one year warranty, and utilize various methods including email communication, video calls, and on-site technical support to resolve after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
