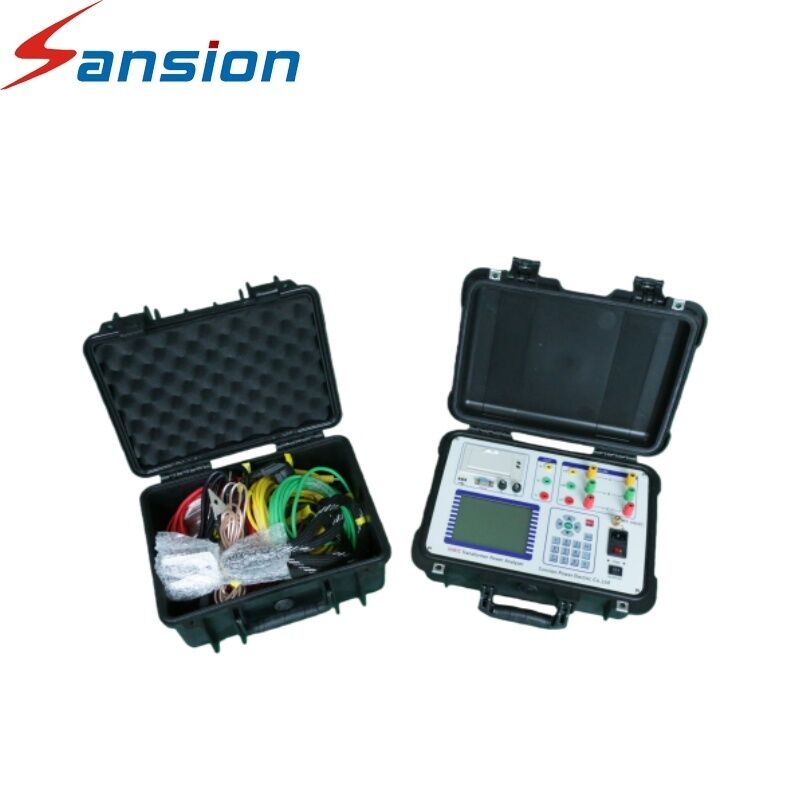

Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
  • Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
  • Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer
  • Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer

Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE/CNAS/ISO9001
Model NO.:
SXBTC
Max Diameter Of Workpiece:
<500mm
Mass Scope Of Workpiece:
<900kg
Type:
Transformer Capacity Tester
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
Digital
Control:
Manual Control
Weight:
0-100Kg
Power Source:
AC220V
Oil Cylinder Position:
Without
Test Function1:
Capacity Test
Test Function2:
Characteristic Test
Test Function3:
No-Load Test / No-Load Loss Test
Test Function4:
Load Test / Load Loss Test
Test Function5:
Short-Circuit Impedance Test
Test Function6:
Turns Ratio (TTR)
Test Function7:
Winding Resistance Test
Test Function8:
Excitation Current Test
Test Function9:
Power Loss Measurement
Test Function10:
Vector Group Verification
Test Function11:
Polarity Test
Transport Package:
Plywood Case
Specification:
ISO9001 SGS
Trademark:
Sansion
Origin:
China
HS Code:
9030332000
Production Capacity:
100 Units/Month
Highlight:

High Light

Highlight:

automatic detection transformer capacity tester

,

distribution transformer characteristic tester

,

automatic transformer capacity measurement device

Trading Information
Minimum Order Quantity:
1 Set
Price:
1000
Packaging Details:
Plywood Case
Payment Terms:
L/C T/T
Supply Ability:
100 Units/Month
Product Description
Transformer Capacity Characteristic Tester
Automatic Detection of Transformer Capacity with advanced measurement capabilities for distribution transformers.
Product Overview
The SXBTC Transformer Capacity Tester is specialized for 10kV distribution transformers, integrating core functions including capacity measurement (30kVA～65,000kVA), no-load/load loss analysis, energy efficiency grade assessment, single-phase performance testing, zero-sequence impedance measurement and harmonic analysis.
Key Features
  • Specialized for 10kV distribution transformers with comprehensive measurement capabilities
  • Supports energy efficiency grading for oil-immersed (S22, SH25) and dry-type (SCB18, SCBH19) transformers
  • Advanced harmonic analysis with waveform and histogram display
  • 6-channel synchronous AC sampling with digital signal processing for high accuracy
  • Built-in lithium battery with 3-phase sine wave inverter power (soft start/stop)
  • Dual power supply: lithium battery or 220V AC charger with intelligent charging management
  • Large LCD with Chinese interface displaying multiple parameters simultaneously
  • Data storage: 200 local records + USB storage (Word format) with thermal printer
  • Supports external voltage/current transformers with adjustable transformation ratio
  • Compact design (320mm×270mm×145mm) and lightweight (5kg) for portability
Standard: IEC270
Technical Specifications
Active Mode Voltage: AC 50V～850V
Current: AC 0.5A～100A
Passive Mode Voltage: AC 50V～850V
Current: AC 0.5A～100A
Precision Voltage: ±0.2%
Current: ±1%
Power: ±10%
Working Temperature -10℃～40℃
Charging Source 30kVA～65,000kVA
Company Profile
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 0
About Sansion
Sansion Power Electric was established in 2005, with over 20 years of experience in R&D, manufacturing and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace and other fields.
Sansion Power Electric includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and employs over 80 staff including 20 technical engineers. We maintain ISO9001 quality system certification and all products strictly conform to international IEC and Chinese state standards.
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 1
Certifications Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 2
Packing & Delivery
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 3 Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 4
Customer Visit
Automatic Detection Transformer Capacity Tester For 10kV Distribution Transformer 5
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience with reliable production lines, test rooms and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: We manufacture to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We use imported components extensively and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes for secure transportation.
Q4: What are the after-sales terms?
A: We offer free consulting service, one year warranty, and utilize various support methods including email communication, video calls, and on-site technical support to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
