Transformer Test Equipment
>
Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester
Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester
  • Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester
  • Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester
  • Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester

Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE/CNAS/ISO9001
Model NO.:
SXBTC
Max Diameter Of Workpiece:
<500mm
Mass Scope Of Workpiece:
<900kg
Type:
Transformer Capacity Tester
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
Digital
Control:
Manual Control
Weight:
0-100Kg
Power Source:
AC220V
Oil Cylinder Position:
Without
Test Function1:
Capacity Test
Test Function2:
Characteristic Test
Test Function3:
No-Load Test / No-Load Loss Test
Test Function4:
Load Test / Load Loss Test
Test Function5:
Short-Circuit Impedance Test
Test Function6:
Turns Ratio (TTR)
Test Function7:
Winding Resistance Test
Test Function8:
Excitation Current Test
Test Function9:
Power Loss Measurement
Test Function10:
Vector Group Verification
Test Function11:
Polarity Test
Transport Package:
Plywood Case
Specification:
ISO9001 SGS
Trademark:
Sansion
Origin:
China
HS Code:
9030332000
Production Capacity:
100 Units/Month
售后服务:
Onsite And Video Call Remote Guidance
保修期:
2 Years Free Warranty Long Life Service
Highlight:

High Light

Highlight:

transformer capacity tester with warranty

,

transformer load parameter analyzer

,

transformer characteristic tester portable

Trading Information
Minimum Order Quantity:
1 Set
Price:
1000
Packaging Details:
Plywood Case
Payment Terms:
L/C T/T
Supply Ability:
100 Units/Month
Product Description

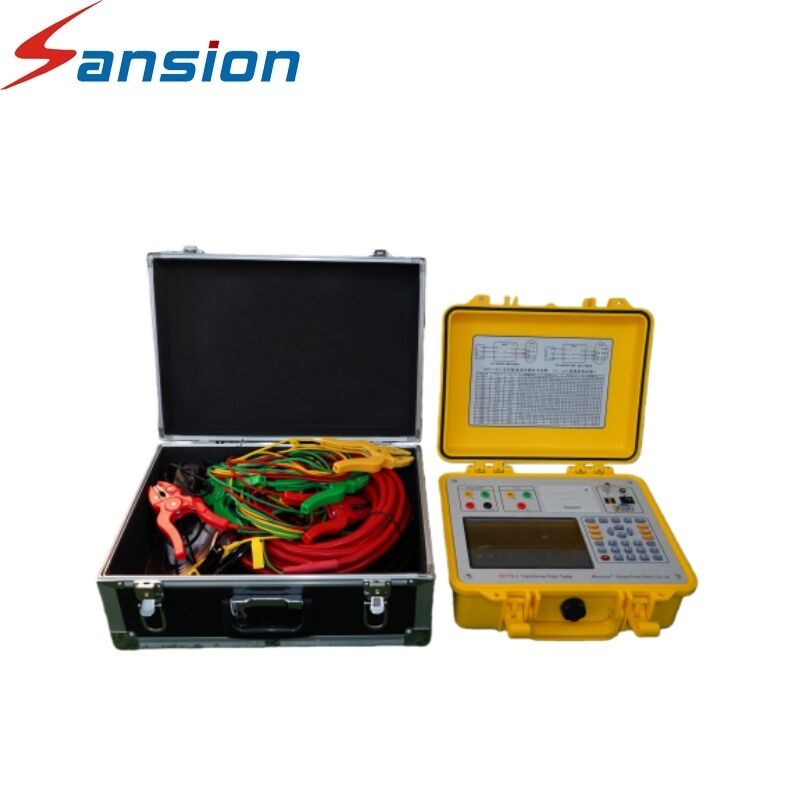

Transformer Capacity and Load Parameter Analyzer
This advanced testing instrument measures distribution and power transformer capacity without requiring additional power sources. It provides comprehensive testing capabilities for various transformer parameters including no-load current, no-load loss, impedance voltage, and load loss.
Key Features
  • Specifically designed for 10kV distribution transformers with full-spectrum testing capabilities
  • Enables energy efficiency classification for oil-immersed (S22, SH25) and dry-type (SCB18, SCBH19) transformers
  • Advanced harmonic analysis with waveform and histogram visualization
  • 6-channel simultaneous AC sampling with digital signal processing for superior precision
  • Integrated lithium battery with 3-phase sine wave inverter power (soft startup/shutdown)
  • Dual power supply modes: lithium battery or 220V AC charger with smart charging control
  • Large LCD screen with Chinese UI for real-time multi-parameter display
  • Data storage: 200 on-board records + USB export (Word format) plus thermal printing function
  • Compatible with external voltage/current transformers with adjustable transformation ratios
  • Compact structure (320mm*270mm*145mm) and lightweight build (5kg) for easy portability
Technical Specifications
Active Mode Voltage: AC 50V～850V
Current: AC 0.5A～100A
Passive Mode Voltage: AC 50V～850V
Current: AC 0.5A～100A
Precision Voltage: ±0.2%
Current: ±1%
Power: ±10%
Working Temperature -10ºC to +40ºC
Charging Source 30kVA～65,000kVA
Dimensions 320mm*270mm*145mm
Standard IEC270
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, and aerospace sectors.
With more than 80 employees including 20 technical engineers, we maintain comprehensive facilities including R&D department, manufacturing workshops, HV testing laboratory, and quality control department. All products conform to international IEC and Chinese state standards with ISO9001 quality system certification.
Product Images
Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 0 Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 1 Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 2 Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 3 Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 4 Transformer Capacity and Load Parameter Analyzer Transformer Capacity and Load Tester 5
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Are goods in stock, can they be customized, and what is the delivery time?
Products are made to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Is the quality guaranteed?
We use imported components and conduct three quality inspections before shipment. All exports are packed in non-fumigation wooden boxes to ensure product integrity.
What are the after-sales terms?
We offer free consulting service, one-year warranty, and comprehensive support through email communication, video calls, and technical assistance to resolve any after-sales issues promptly.
What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
