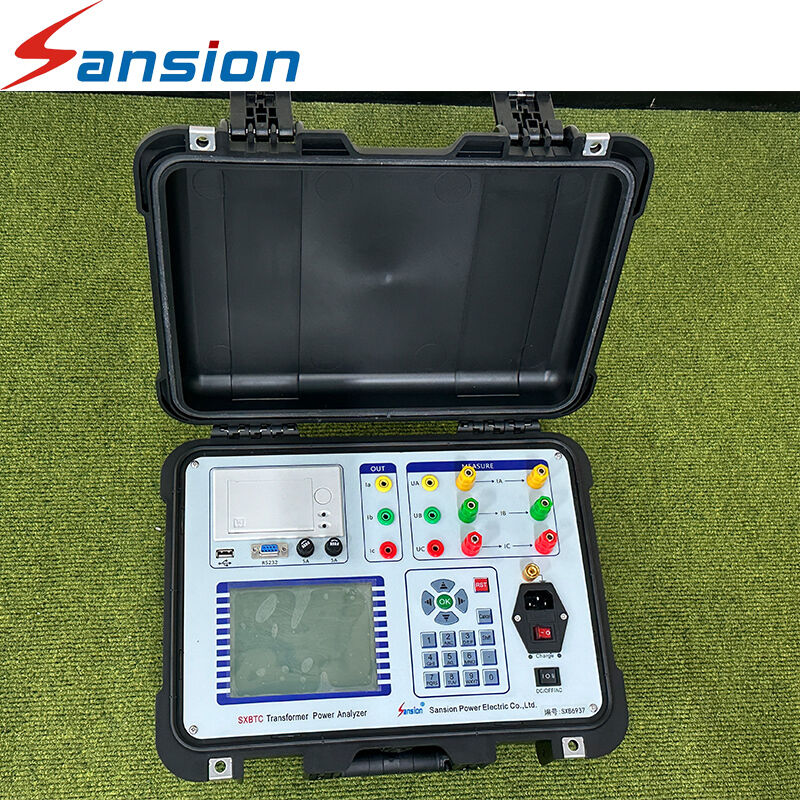

Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source
  • Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source
  • Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source
  • Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source
  • Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source

Transformer Power Analyzer Capacity Loss Tester with Built-in Power Source

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE SGS ISO9001
Model Number: SXBTC
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE SGS ISO9001
Model Number:
SXBTC
Model:
SXBTC Transformer Power Analyzer
Function Type:
4-in-1 Integrated Tester
Capacity Test Range:
20kVA~100000kVA
Max Measuring Voltage:
750V
Measurement Accuracy:
±0.5% (Voltage & Current)
Built-in Power Supply:
3-phase High Power Test Source
Data Storage Capacity:
200 Groups Test Records
Display:
Adjustable High Brightness LCD, English UI
Net Weight:
3kg
Dimension:
32cm×24cm×13cm
Highlight:

High Light

Highlight:

Transformer power analyzer with built-in power

,

Transformer capacity loss tester

,

Transformer characteristic tester with power source

Trading Information
Minimum Order Quantity:
1
Packaging Details:
plywood case
Delivery Time:
5-30 work days
Payment Terms:
T/T,L/C
Product Description
Product Overview

Model: SXBTC 4-in-1 Transformer Power Analyzer

Alias: Transformer Capacity & Loss Tester, Iron & Copper Loss Tester

This integrated tester combines transformer capacity detection, loss testing, harmonic analysis and oscilloscope functions with high test accuracy. It can measure transformer capacity, no-load loss, short-circuit loss, impedance voltage, harmonic content and complete vector analysis.

With built-in three-phase high-power test source, it supports passive measurement without external power supply or regulators. Lightweight at only 3kg, equipped with English operation screen, storage and printing function, suitable for field inspection and factory testing of transformers 20kVA–100000kVA.

Main Features
  1. 4-in-1 multifunctional design, passive capacity measurement, range 20kVA~100000kVA
  2. Built-in rechargeable three-phase test power, 500 transformers per full charge
  3. No extra power source or regulator needed, simple wiring and high efficiency
  4. Test no-load current/loss, short-circuit voltage/loss for all transformers
  5. Automatic waveform, temperature, voltage and current correction
  6. 0–750V wide voltage measurement, no gear shifting required
  7. Adjustable high-brightness LCD, full English interface, easy operation
  8. Store 200 groups of data, built-in thermal printer for quick reports
  9. Real-time battery percentage display
  10. Compact size (32×24×13cm), light weight 3kg, easy to carry
  11. Superior insulation safety: ≥100MΩ insulation resistance, 2kV withstand voltage
Technical Specifications
Item Parameter
Active Measurement Voltage: 0~10V; Current: 0~10A
Passive Measurement Voltage: 0~750V; Current: 0~100A auto-range
Precision Voltage ±0.5%, Current ±0.5%, Power ±0.5% (CosΦ>0.2) / ±1.0% (0.02<CosΦ<0.2)
Test Capacity Range 20kVA ~ 100000kVA
Working Temp -10℃ ~ +40℃
Charging Voltage AC 160V~260V
Insulation Terminal-shell insulation ≥100MΩ, 2kV 1min withstand voltage
Dimension 32cm × 24cm × 13cm
Weight 3kg
Storage 200 groups test data

Advantages: Factory direct supply, high precision complying with industry standards, portable offline testing, full English supporting documents.
