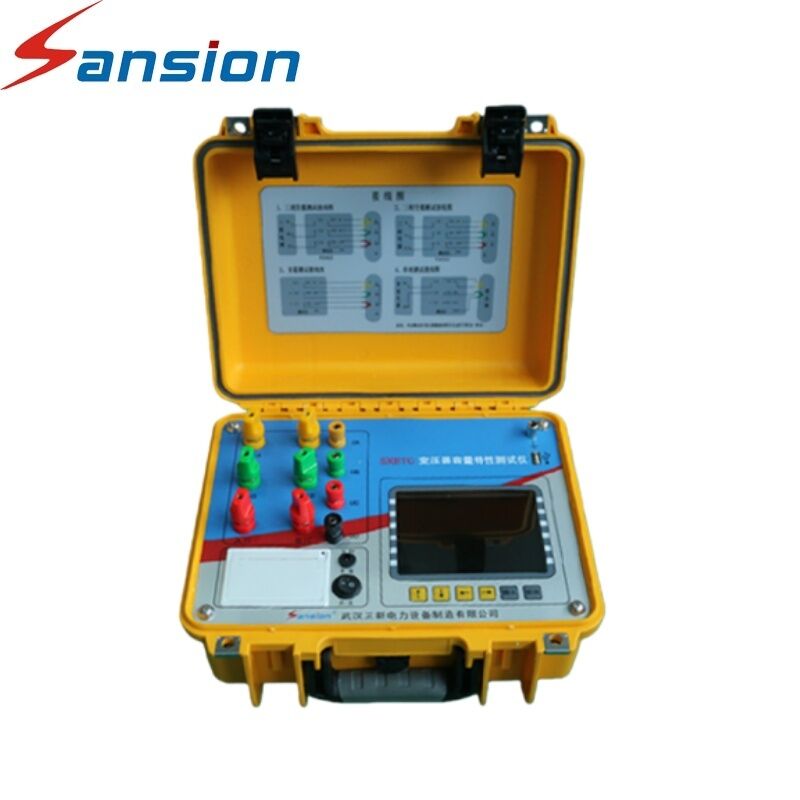

Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester
Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester
  • Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester
  • Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester
  • Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester

Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE/CNAS/ISO9001
Model NO.:
SXBTC
Max Diameter Of Workpiece:
<500mm
Mass Scope Of Workpiece:
<900kg
Type:
Transformer Capacity Tester
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
Digital
Control:
Manual Control
Weight:
0-100Kg
Power Source:
AC220V
Oil Cylinder Position:
Without
Test Function1:
Capacity Test
Test Function2:
Characteristic Test
Test Function3:
No-Load Test / No-Load Loss Test
Test Function4:
Load Test / Load Loss Test
Test Function5:
Short-Circuit Impedance Test
Test Function6:
Turns Ratio (TTR)
Test Function7:
Winding Resistance Test
Test Function8:
Excitation Current Test
Test Function9:
Power Loss Measurement
Test Function10:
Vector Group Verification
Test Function11:
Polarity Test
Transport Package:
Plywood Case
Specification:
ISO9001 SGS
Trademark:
Sansion
Origin:
China
HS Code:
9030332000
Production Capacity:
100 Units/Month
Highlight:

High Light

Highlight:

intelligent transformer capacity characteristic tester

,

precision transformer no load tester

,

transformer characteristic tester capacity measurement

Trading Information
Minimum Order Quantity:
1 Set
Price:
1000
Packaging Details:
Plywood Case
Payment Terms:
L/C T/T
Supply Ability:
100 Units/Month
Product Description
Transformer Capacity Load No-Load Tester with Powerful Functions
The Transformer Capacity and Characteristic Tester is a high-precision, intelligent testing instrument specifically designed for performance detection and capacity verification of power transformers. It integrates multiple testing functions, enabling comprehensive measurements of key parameters including transformer capacity, load loss, no-load loss, no-load current, and transformation ratio.
Key Features
  • Comprehensive Testing Functions: Complete multiple tests including transformer capacity verification, no-load test, load test, transformation ratio test, and insulation resistance test in one operation
  • High Testing Precision: Utilizes high-speed 32-bit ARM microprocessor and 16-bit high-resolution A/D converter with advanced digital filtering algorithms
  • Intelligent Operation: Large color touch screen with intuitive interface, one-key test start, and automatic data processing
  • Wide Application Range: Suitable for oil-immersed transformers, dry-type transformers, distribution transformers, and power transformers up to 110kV
  • Portable Design: Compact structure with durable carrying case and built-in high-capacity lithium battery
  • Reliable Safety Protection: Integrated overvoltage, overcurrent, short-circuit, and electric shock protection
  • Data Management: USB, RS232, and Ethernet interfaces for data export to Excel and on-site report printing
Technical Specifications
Parameter Category Specific Parameters Accuracy
Testing Voltage Range Primary voltage: 0-10kV (without external PT); Secondary voltage: 0-600V ±0.5%
Testing Current Range Primary current: 0-100A (without external CT); Secondary current: 0-5A ±0.5%
Capacity Testing Range 10kVA - 20000kVA ±1.0%
No-Load Loss Measurement 0-10000W ±1.0%
Load Loss Measurement 0-50000W ±1.0%
No-Load Current Measurement 0-100A ±1.0%
Transformation Ratio Testing Range 1:1 - 1000:1 ±0.2%
Frequency Measurement Range 45Hz - 65Hz ±0.1Hz
Working Power Supply AC 220V ±10%, 50Hz/60Hz; Built-in lithium battery: 12V/10Ah -
Working Environment Temperature: -20℃ - 50℃; Humidity: ≤85% RH; Altitude: ≤2000m -
Instrument Size and Weight Size: 420mm * 320mm * 180mm; Weight: ≤8kg (including battery) -
About Sansion Power Electric
Established in 2005, Sansion Power Electric has over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, and aerospace sectors.
Our facility includes R&D department, manufacturing workshops, high-voltage testing laboratory, quality control department, and employs over 80 staff including 20 technical engineers. We maintain ISO9001 quality system certification and all products conform to international IEC and Chinese state standards.
Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 0 Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 1 Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 2 Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 3 Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 4 Intelligent Transformer Capacity Characteristic Tester High Precision No Load Tester 5
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005 with twenty years of production experience. We have reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
We manufacture to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days.
Q3: Is the quality guaranteed?
We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We offer free consulting service, one year warranty, and support through email communication, video calls, and technical assistance to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products are exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
