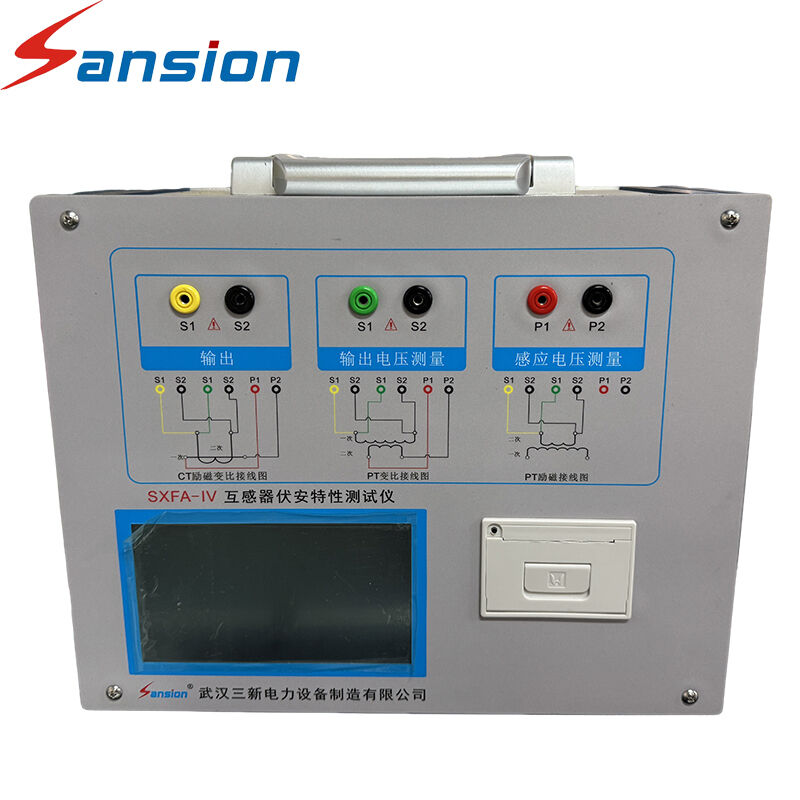

CT PT Comprehensive Tester Volt-Ampere Characteristic Tester CT PT Analyzer

The tester is a new generation of current and voltage transformer testing instruments developed by our factory, it is produced after widely listening to users' opinions and a large number of market research and in-depth theoretical research. The device is manufactured by process of high performance DSP and ARM, it has the advantage of advanced design, stable and reliable product performance, complete functions, high automation and good testing efficiency, it is used for professional testing instrument transformer in electric power industry.

1. Very comprehensive functions, it can meet the various types of CT (such as: Protection, measurement and TP) excitation characteristic (Volt ampere characteristic) such as Ratio, polarity, winding resistance, secondary load,ratio difference and angle difference testing, and it can be used for various electromagnetic excitation properties, PT ratio,polarity,winding resistance,ratio difference and angle difference testing etc.
2. Automatically gives the knee point voltage / current, 10% (5%) error curve, accuracy limit factor (ALF), meter's safety coefficient (FS), secondary time constant (Ts) and remanence coefficient (Kr), CT/PT saturated and unsaturated inductance parameters.
3. To meet the standards of GB1208(IEC60044-1), GB16847 (IEC60044-6),GB1207 and other types of transformer standard, and it is in accordance with the transformer type and level automatic choice of the standard test.
4. This principle based on advanced low frequency testing, it can test CT kenn,point up to 45KV.
5. Very friendly and beautiful interface, full Chinese/English graphical interface.
6. This device can save 2000 groups of datas,never power failure. After testing,U disk is stored in PC, and data analysis can be used by the software and WORD report is generated.
7. Easy to test, a key to complete measuring CT resistance, excitation, ratioand polarity, except for load test, other CT test items are same connection mode.
