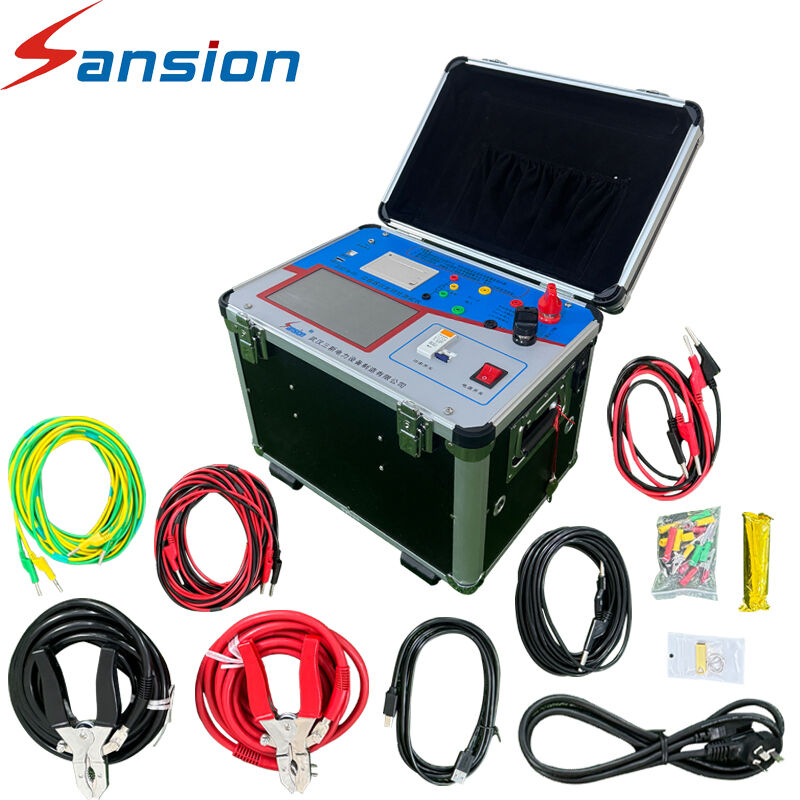

Fully Automatic CT PT Analyzer Current Transformer Parameters Analyzer

Name: Fully Automatic CT PT Analyzer Current Transformer Parameters Analyzer
Brand: Sansion Power Electric Co., Ltd.
Price: 1375 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/CNAS/ISO9001

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE/CNAS/ISO9001

Model NO.:

SXFA

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

CT/PT Analyzer

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual Control

Weight:

0-100Kg

Power Source:

AC220V

Working Power Supply:

AC220V±10V

Power Input And Output Frequency:

50-60Hz

Equipment Power Output Waveform:

Sine Wave

Test Project 1:

Excitation Characteristic

Test Project 2:

Knee-Point Voltage

Test Project 3:

Accuracy Limit Factor

Test Project 4:

Secondary Winding Resistanc

Test Project 5:

Polarity Verification

Transport Package:

Plywood Case

Specification:

ISO9001 SGS

Trademark:

Sansion

Origin:

China

HS Code:

9030332000

Production Capacity:

300 Units/Month

Highlight:

High Light

Highlight:

Fully Automatic CT PT Analyzer

Current Transformer CT PT Analyzer

Trading Information

Minimum Order Quantity:

1 Set

Price:

1375

Packaging Details:

Plywood Case

Payment Terms:

L/C T/T

Supply Ability:

100 Units/Month

Product Description

Fully Automatic CT PT Analyzer Current Transformer Parameters Analyzer

The CT PT Analyzer automatically determines all relevant current transformer values and compares results with selected standards. This instrument facilitates fast and economical on-site testing and calibration of metering and protection current transformers. Manufacturers of current transformers, high voltage transformers, and switchgear also utilize the CT Analyzer for development and production testing.

Key Features

CT excitation curve analysis
10,000 groups data storage capacity
Optional battery function
Full automatic demagnetization
Testing of various CT/PT types
Easy operation with quick error testing

Model Specifications Comparison

Main Testing Functions	SXFA-II	SXFA-III	SXFA-V Full-featured	SXFA-IV Frequency-changing Method
Voltage current characteristic test, transformation ratio test, power frequency AC withstand voltage test	✓ CT/PT	✓ CT/PT	✓ CT/PT	✓ CT/PT
5% and 10% error curves, polarity discrimination, demagnetization	✓ CT/PT	✓ CT/PT	✓ CT/PT	✓ CT/PT
Automatic calculation of printed volt ampere inflection point value and polarity judgment	✓ CT/PT	✓ CT/PT	✓ CT/PT	✓ CT/PT
Primary flow (secondary circuit detection)	✓ CT/PT	✓ CT/PT	✓ CT/PT	✓ CT/PT
Angle difference ratio difference		✓ CT/PT	✓ CT/PT	✓ CT/PT
Secondary winding resistance measurement, secondary actual load measurement			✓ CT/PT	✓ CT/PT

Technical Specifications

Working power supply	AC220V±10V
Power input and output frequency	50-60Hz
Equipment power output waveform	Sine Wave
Accuracy	0.02% or 0.05%
Output voltage	0-100Vrms
Equivalent excitation voltage	≤5000V/50KV
Operating temperature	-10°C to +50°C

About Sansion Power Electric

Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace, and other critical sectors.

Our facility includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and comprehensive support offices. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.

Certifications

Customer Visit

Packing & Delivery

Frequently Asked Questions

Q1: Is your company a sales company or a manufacturer?

Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?

We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.

Q3: Is the quality guaranteed?

We ensure quality through extensive use of imported components and triple quality inspection before shipment. Export products are uniformly packed in non-fumigation wooden boxes.

Q4: What are the after-sales terms?

We offer free consulting service, one-year warranty, and comprehensive support through email communication, video calls, and on-site technical assistance to resolve any after-sales issues promptly.

Q5: What are the cooperative countries or regions?

Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
