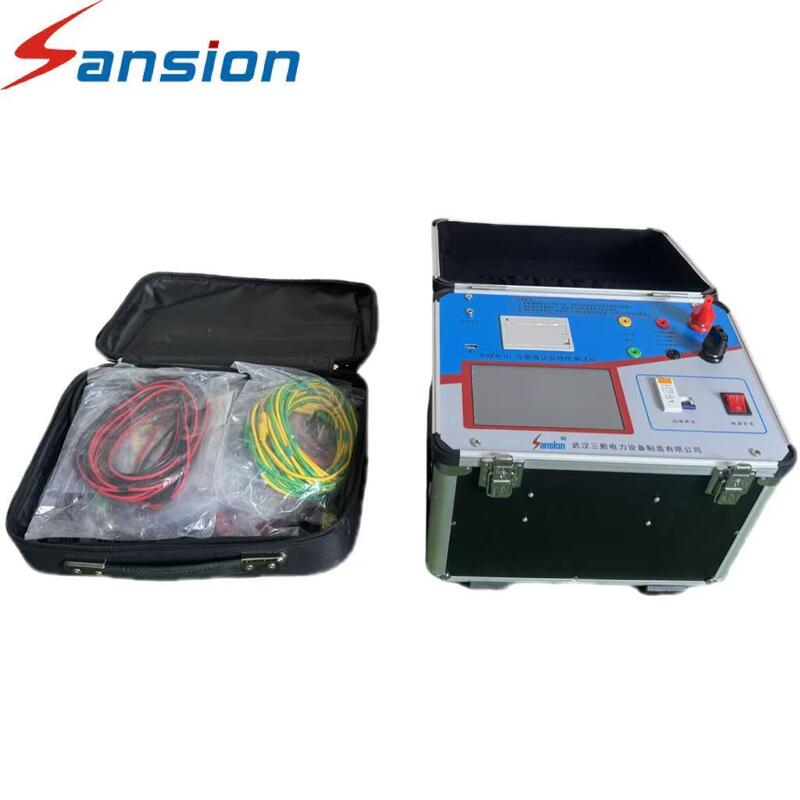

Portable Design Volt Ampere Characteristic Tester Current Transformer Test Machine
The Volt-Ampere Characteristic Tester Current Transformer Test Machine is a professional testing instrument for current and voltage transformers in the electric power industry. This advanced device offers comprehensive functionality, high automation, and excellent testing efficiency.
Product Overview
This CT/PT Tester represents the latest generation of current and voltage transformer testing instruments, developed through extensive market research and theoretical analysis. The device features advanced design, stable performance, and complete functionality for professional testing applications.
Key Features
- Comprehensive functionality for all CT types (protection CT, measuring CT, TP) including excitation characteristic tests, turn ratio, polarity, secondary winding resistance, secondary burden, ratio error, and angular difference
- Complete PT testing capabilities including excitation characteristic, turn ratio, polarity, secondary winding resistance, ratio error, and angular difference
- Field verification without requiring standard current transformers, current injectors, load banks, or voltage regulating controllers
- Simplified test wiring and operation for efficient field transformer verification
- One-key operation for CT DC resistance, excitation, ratio, and polarity tests
- 5.7-inch graphic transflective LCD display with excellent sunlight visibility
- Rotating optical mouse for simple, fast, and convenient operation
- Built-in printer for automatic test report generation
Technical Specifications
| Parameter |
Specification |
| Working Power Supply |
AC220V±10V |
| Power Input and Output Frequency |
50-60Hz |
| Voltage Measuring Precision |
±0.1% |
| Voltage Current Characteristic Output (Routine) |
0-1000V | 0-1000V | 0-2500V | 0-30KV |
| Variable Ratio Test Output Current (Routine) |
0-600A | 0-600A | 0-600A | 0-600A |
| Voltage Current Characteristic Output (Custom) |
0-2500V customizable | 0-2500V customizable | / | 0-40/50KV |
| Variable Ratio Test Output Current (Custom) |
0-1000A customizable | 0-1000A customizable | 0-1000A customizable | 0-20A |
| Working Environment |
Temperature: -10ºC~50ºC, Humidity: ≤90% |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, and aerospace.
Our facility includes R&D departments, manufacturing workshops, high-voltage workshops, sample exhibition rooms, testing laboratories, and quality control departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.
Certifications
Customer Visit
Packing & Delivery
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: Products are made to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes to ensure quality.
Q4: What are the after-sales terms?
A: We offer free consulting service, one-year warranty, and multiple support methods including email communication, video calls, and on-site technical support to resolve after-sales issues promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
