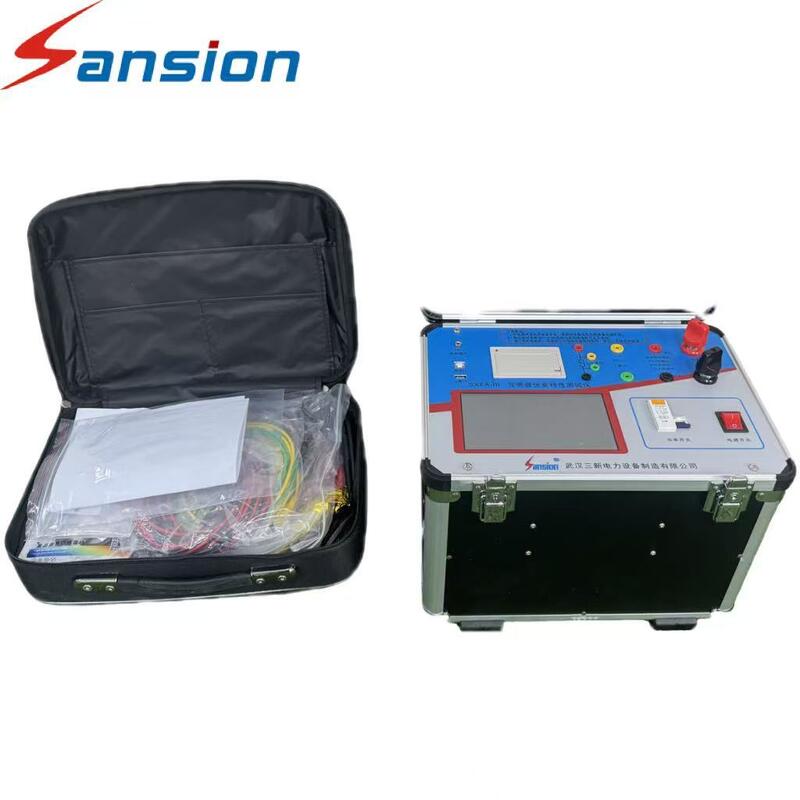

Custom CT PT Comprehensive Tester - CT PT Volt Ampere Characteristic Analyzer
Professional CT/PT Comprehensive Tester for measuring current transformers and voltage transformers with advanced analysis capabilities.
Product Overview
The Automatic Advanced CT Analysis CT PT Tester is designed to measure all types of current transformers and voltage transformers. It calculates ratio errors and phase angle errors at rated and working burden in a single test, with automatic evaluation of results against selected standards.
Key Features
- Fully automatic testing with digital settings and step-by-step voltage increase
- Single unit performs 5%/10% error curve testing, volt ampere characteristic testing, ratio polarity testing
- Computer connectivity for data transfer and analysis
- Volt ampere characteristic test output up to 1000V and 20A
- Ratio test current capacity up to 600A (variable frequency type up to 30kV)
- Optional external booster for 500KV level 1A current transformers (up to 2000V and 2A)
- Large screen graphic LCD with intuitive Chinese graphical interface
- Built-in printer for curve graphs and test data
- Unique photoelectric rotating mouse for operation
Technical Specifications
| Parameter |
Specification |
| Power Supply |
AC220V±10%, 50/60Hz±10% |
| Voltage Output |
0.1~180V (AC) |
| Current Output |
0.001~5A |
| Voltage Current Characteristic Output (Routine) |
0-1000V | 0-1000V | 0-2500V | 0-30KV |
| Ratio Test Output (Routine) |
0-600A | 0-600A | 0-600A | 0-600A |
| Voltage Current Characteristic Output (Custom) |
0-2500V customizable | 0-2500V customizable | / | 0-40/50KV |
| Ratio Test Output (Custom) |
0-1000A customizable | 0-1000A customizable | 0-1000A customizable | 0-20A |
Manufacturer Profile
Sansion Power Electric, established in 2005, specializes in R&D, manufacturing, and marketing of power electrical testing products. With over 20 years of experience, our products serve power electric, railroad, energy conservation, water conservancy, petrochemical, and aerospace industries.
Our facility includes R&D department, manufacturing workshops, HV testing laboratory, and quality control department. We employ over 80 staff including 20 technical engineers and maintain ISO9001 quality system certification with compliance to international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005 with twenty years of production experience. We have reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
Products are made to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days.
Q3: Is the quality guaranteed?
We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We offer free consulting service, one year warranty, and multiple support methods including email communication, video calls, and technical support to resolve after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products are exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
