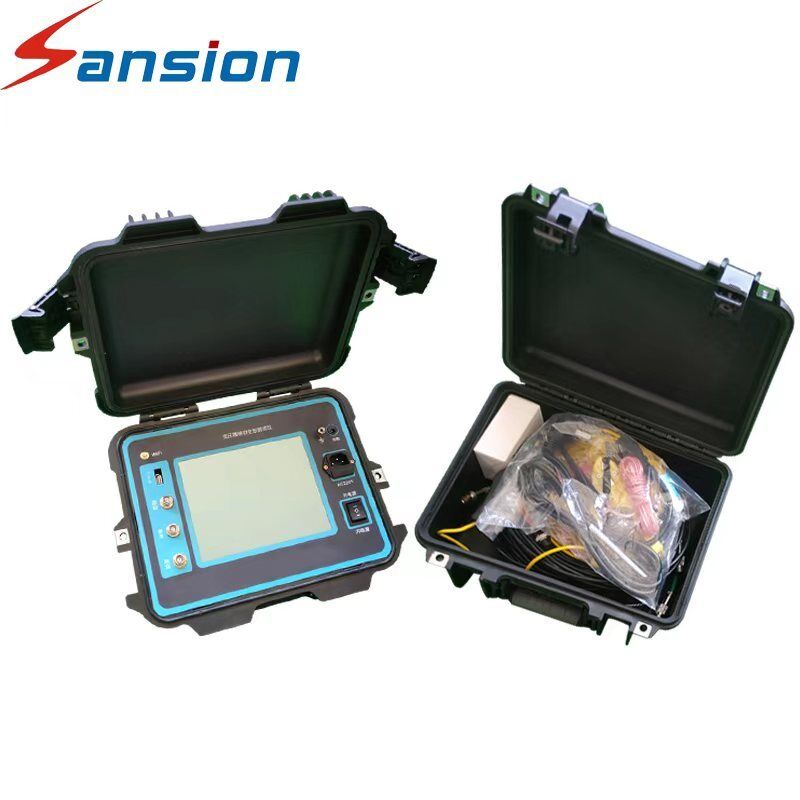

Automatic Transformer Winding Turns Ratio Tester
High Accuracy Winding Deformation Analyzer with advanced testing capabilities for power industry applications.
Product Overview
Our state-of-the-art technology ensures that every test is performed in accordance with industry standards, providing users with unmatched accuracy and reliability. This equipment can automatically make judgments, effectively saving time and labor costs, and avoiding possible errors caused by manual judgment.
Key Features
- Advanced DDS frequency scanning technology
- Dual power supply: AC 220V+10% mains power supply, 6V5AH internal power supply battery
- High-speed and highly integrated microprocessor design
- Software-configurable sine wave amplitude output
- Dual channel 16-bit AD sampling
- 8-inch color touch screen with adjustable brightness
- Powerful upper computer software for curve analysis, printing, and document generation
- USB 2.0 interface supporting data upload and online testing
Technical Specifications
| Scan Method |
Frequency Range |
Source Points |
| 1K-1000KHZ_1.0 |
1KHz - 1000KHz |
1000 points |
| 1K-1000KHZ_0.5 |
1KHz - 1000KHz |
2000 points |
| 1K-2000KHZ_1.0 |
1KHz - 2000KHz |
2000 points |
| 1K-2000KHZ_0.5 |
1KHz - 2000KHz |
4000 points |
| 100HZ - 1000KHZ |
100Hz - 1000KHz |
1440 points |
| 100HZ - 2000KHZ |
100Hz - 2000KHz |
2440 points |
Additional Specifications
| Inductance Test Range |
>10μH |
| Maximum Pulse Energy |
0.25J |
| Frequency Sweeping Precision |
Less than 0.01% |
| Input Impedance |
10MΩ |
| Measurement Speed |
Maximum 15 times/sec |
| Display Waveform Measurement |
Voltage, Time, Frequency |
| Language Support |
Switch between Chinese and English |
Company Profile
Sansion Power Electric was established in 2005, with over 20 years of experience in R&D, manufacturing and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace and other fields.
Sansion Power Electric includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and employs over 80 staff including 20 technical engineers. We have obtained ISO9001 quality system certification and all products strictly conform to international IEC and Chinese state standards.
Certifications
Packing & Delivery
Customer Visit
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After orders are placed, we can customize products according to customer requirements using the latest technology. The delivery time is usually within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: To ensure quality, we use imported components extensively. Products undergo three quality inspections before shipment and are packed in non-fumigation wooden boxes for export.
Q4: What are the after-sales terms?
A: We offer free consulting service, one year warranty, and utilize various methods including email communication, video calls, and on-site technical support to resolve any after-sales problems promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
