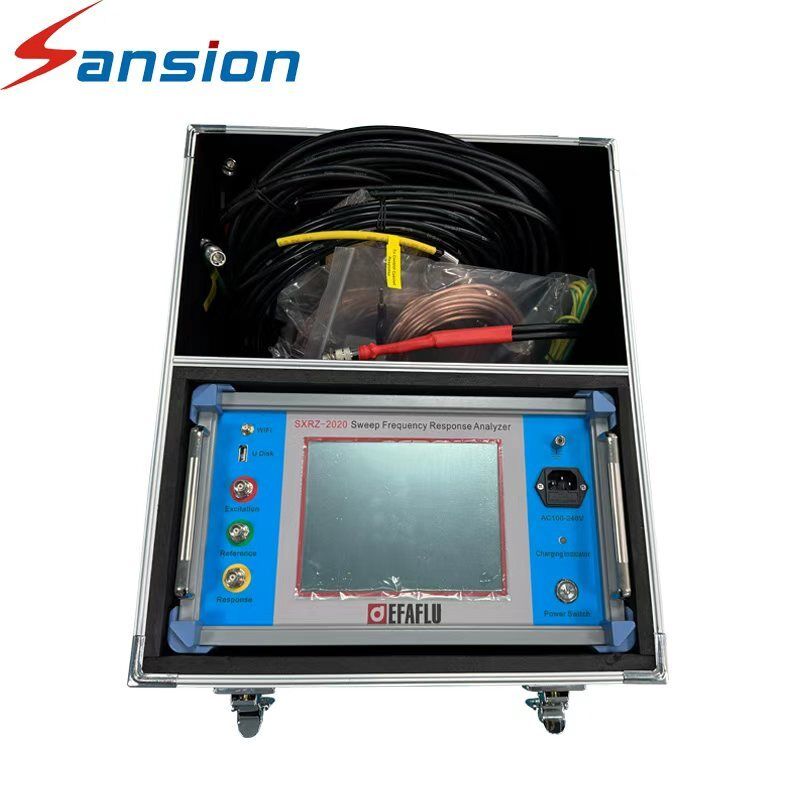

Touch Screen Transformer Winding Deformation Tester With Sweep Frequency Response Analysis
This advanced instrument is designed for comprehensive testing of power transformers and special-purpose transformers. During operation or transportation, transformers are susceptible to impacts from fault short-circuit currents and physical collisions. The powerful electromagnetic forces generated by short-circuit currents can destabilize transformer windings, leading to permanent deformation such as local distortion, bulging, or displacement, which seriously compromises transformer safety and reliability.
Key Features
- Advanced DDS frequency scanning technology
- Dual power supply: AC 220V±10% mains power and 6V5AH internal battery
- High-speed integrated microprocessor design
- Software-configurable sine wave amplitude output
- Dual channel 16-bit AD sampling
- Simple on-site wiring and user-friendly operation
- USB or network connectivity between main unit and PC
- Capable of testing without disassembling transformer or removing tank cover
Technical Specifications
| Scan Methods |
1K-1000KHZ (1.0 source point 1KHZ 1000)
1K-1000KHZ (0.5 source point 0.5KHZ 2000)
1K-2000KHZ (1.0 source point 1KHZ 2000)
1K-2000KHZ (0.5 source point 0.5KHZ 4000)
100HZ - 1000KHZ (source point 1440)
100HZ - 2000KHZ (source point 2440)
|
| Measurement Range |
-100dB to +20dB |
| Sweep Frequency Range |
10Hz to 10MHz |
| Frequency Sweeping Precision |
Less than 0.01% |
| Input Impedance |
1MΩ per channel |
| Channel Static Error |
0.5% |
| Excitation Channel Range |
±10V |
| Language Support |
Chinese and English |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used across power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, aerospace, and other industrial sectors.
Our facility includes dedicated R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, testing laboratories, and quality control departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, operating as a self-produced and self-sold manufacturer. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We ensure quality by using imported components extensively and conducting three-stage quality inspections. All exports are packed in non-fumigation wooden boxes for secure shipping.
Q4: What are the after-sales terms?
We provide free consulting services, one-year warranty, and comprehensive support through email communication, video calls, and on-site technical assistance to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and many other countries and regions worldwide.
