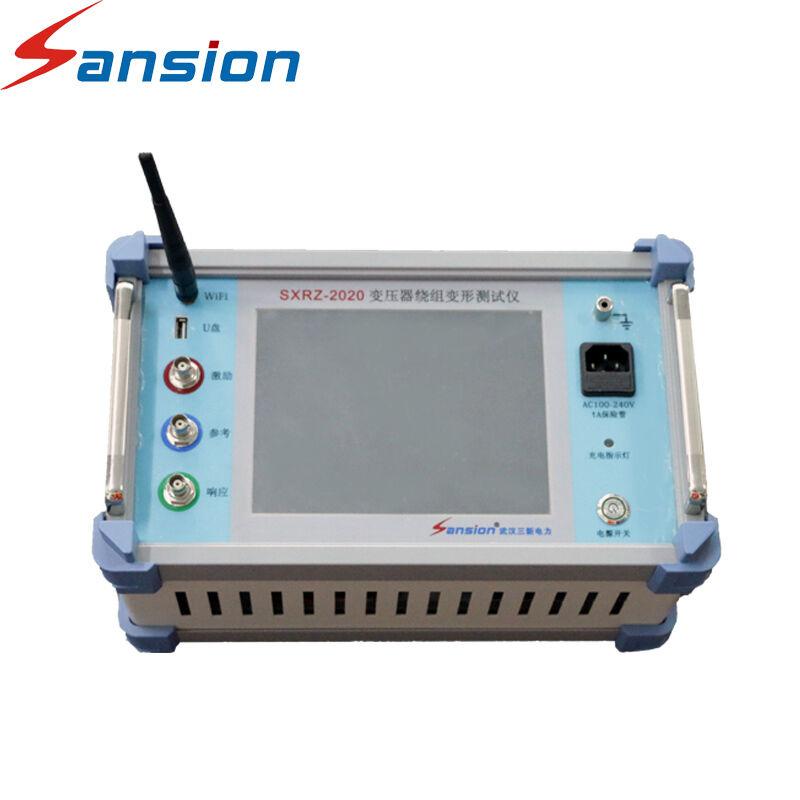

Portable Transformer Winding Deformation Analyzer With DDS Frequency Scanning
The Transformer Winding Deformation Frequency Response Tester is a precision instrument designed for measuring DC winding resistance of power transformers, current transformers, and other inductive devices. This advanced analyzer features fast measurement capabilities, compact lightweight design, user-friendly operation, and high measurement accuracy.
Key Features
- High-speed SCM controlled for easy operation
- Dual channel measurement for simultaneous resistance readings
- Selectable current positions with wide measurement range
- Comprehensive protection functions for safety and reliability
- Intelligent power management with low consumption
- LCD display screen
- Built-in thermal printer
Technical Specifications
| Frequency Scan Methods |
1K-1000KHZ (1.0 source point 1KHZ 1000)
1K-1000KHZ (0.5 source point 0.5KHZ 2000)
1K-2000KHZ (1.0 source point 1KHZ 2000)
1K-2000KHZ (0.5 source point 0.5KHZ 4000)
100HZ-1000KHZ (source point 1440)
100HZ-2000KHZ (source point 2440) |
| Measurement Accuracy |
±0.2% (full scale) |
| Measurement Precision |
0.1dB |
| Frequency Sweeping Precision |
Less than 0.01% |
| Display |
128 * 64 Dot Matrix Display |
| Data Storage |
255 records |
| Test Channels |
Single, Dual, and Triple Channel Options Available |
| Language Support |
Switch between Chinese and English |
Product Images
Certifications
Packaging & Delivery
Customer Engagement
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used across power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical, and aerospace industries.
Our comprehensive facility includes R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, testing laboratories, and quality control departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, operating since 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We use imported components extensively and conduct three quality inspections before shipment. All exports are packed in non-fumigation wooden boxes for secure transportation.
Q4: What are the after-sales terms?
We provide free consulting services, one-year warranty, and comprehensive support through email communication, video calls, and on-site technical assistance to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries worldwide.
