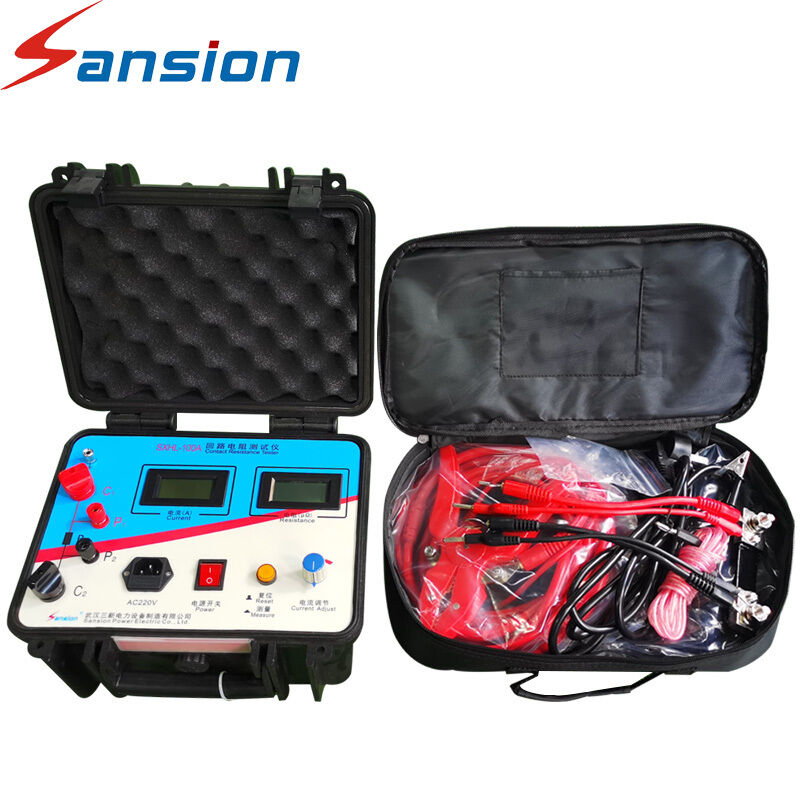

100A 200A Loop Contact Resistance Micro-Ohm Tester
The SXHL Loop Contact Resistance Micro-Ohm Tester is engineered for precise measurement of contact resistance in high and low voltage switchgear main contacts, as well as DC resistance in high and low voltage cable lines. Featuring constant current output options of 100A, 200A, or 500A with a maximum output voltage of 10V, this tester delivers 2-3 times higher voltage than conventional models, enabling the use of test leads with smaller cross-sectional areas.
Key Features
- Wide resistance measurement range with high resolution
- High precision switching power supply with automatic adjustment
- Temperature compensation function for automatic conversion to 20ºC resistance
- User-friendly 5.0" 65K color touch screen operation
- Built-in high-capacity non-volatile memory storing 500 data sets
- Integrated high-speed micro thermal printer for data printing
- Data export capability via USB drive
Technical Specifications
| Test Current |
Test Range |
Accuracy |
| 100A |
0~40mΩ |
±(0.5%rdg+0.2μΩ) |
| 50A |
0~80mΩ |
- |
Additional Specifications:
Open-circuit voltage: DC10V
Resolution: 0.0001 μΩ, 5 significant digits
Host size: 360mm×235mm×270mm
Host weight: 8.5kg
Operating Conditions
Ambient temperature: -10°C to 50°C
Ambient humidity: ≤85% RH, non-condensing
Operating power supply: AC220V ±10%
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely utilized across power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, aerospace, and other industrial sectors.
Our facility includes R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, HV testing laboratories, quality control departments, and comprehensive sales and support teams. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, operating as a self-produced and self-sold manufacturer. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
We manufacture products to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We ensure quality by using imported components extensively and conducting three rigorous quality inspections before shipment. All exports are packed in non-fumigation wooden boxes for secure transportation.
Q4: What are the after-sales terms?
We provide free consulting services, one-year warranty, and comprehensive support through email communication, video calls, and on-site technical assistance to resolve any after-sales issues promptly.
Q5: What are the cooperative countries or regions?
Our products have been successfully exported to numerous countries including the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other global markets.
