| Place of Origin: | China |
| Brand Name: | Sansion Power |
| Certification: | CE/SGS/EMS/ISO 9001 |
| Model Number: | SXHL-100A |

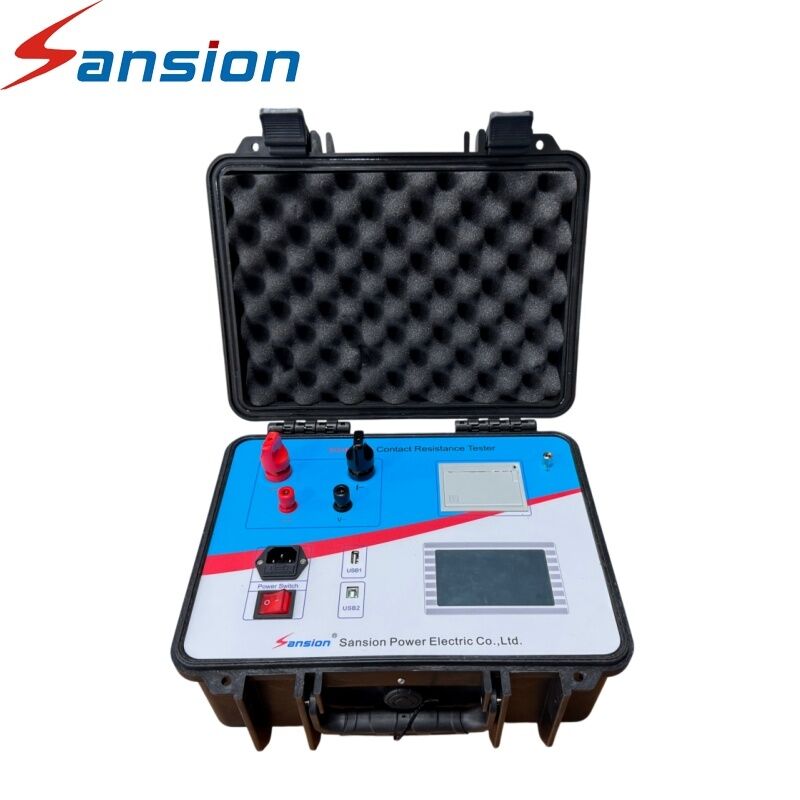

SXHL-100A Loop Resistance Tester
The SXHL-100A Loop Resistance Tester is designed to measure contact resistance at circuit breakers, busbars, and other electrical connection points. It provides a practical solution for evaluating the quality of electrical connections in power equipment and high current circuits.
The tester uses four-terminal measurement technology to reduce the influence of lead resistance and improve measurement accuracy. Stable constant current output helps provide consistent and reliable test results, while the LCD touch screen simplifies parameter setting, test operation, and result viewing.
| Parameter | Specification |
|---|---|
| Product Type | Loop Resistance Tester |
| Maximum Test Current | 100 A |
| Measurement Method | Four Terminal Measurement |
| Current Output | Constant Current Output |
| Display | LCD Touch Screen |
| Test Object | Circuit Breakers, Busbars, Electrical Connections |
| Application | Contact Resistance Measurement |
Q1: What can the SXHL-100A test?
A: It is designed to measure contact resistance of circuit breakers, busbars, and other electrical connection points.
Q2: Why does the tester use four-terminal measurement technology?
A: Four-terminal measurement helps minimize the effect of test lead resistance, improving the accuracy of low-resistance measurements.
Q3: What is the maximum test current?
A: The tester provides a maximum test current of 100 A for contact and loop resistance measurement.
Q4: Is the tester easy to operate?
A: Yes. The LCD touch screen provides an intuitive interface for setting the test and viewing measurement results.
Q5: Where is a loop resistance tester commonly used?
A: It is commonly used for circuit breaker testing, busbar inspection, substation maintenance, and electrical connection resistance measurement.
