AC Resonant Test System
>
Automatic Variable Frequency Series Resonance Test Equipment with Digital Control
  • Automatic Variable Frequency Series Resonance Test Equipment with Digital Control
  • Automatic Variable Frequency Series Resonance Test Equipment with Digital Control
  • Automatic Variable Frequency Series Resonance Test Equipment with Digital Control
  • Automatic Variable Frequency Series Resonance Test Equipment with Digital Control

Automatic Variable Frequency Series Resonance Test Equipment with Digital Control

Product Details:
Place of Origin: China
Brand Name: Sansion Power
Certification: CE/SGS/EMS/ISO 9001
Model Number: SXBP
Detail Information
Place of Origin:
China
Brand Name:
Sansion Power
Certification:
CE/SGS/EMS/ISO 9001
Model Number:
SXBP
Voltage Rating:
108kV
Technology:
Variable Frequency Resonance
Test Type:
AC Withstand
Load Compatibility:
Large-capacitance Electrical
Reactor Design:
Adjustable Modular Combinations
Frequency Control:
Variable Frequency Adjustment
Protection Functions:
Overvoltage, Overcurrent, Abnormal-resonance
Monitoring:
Voltage And Current Monitoring
Highlight:

High Light

Highlight:

Variable Frequency Resonance Test Equipment

,

Digital Control AC Resonant Test System

,

Automatic Series Resonance Test Equipment

Trading Information
Minimum Order Quantity:
1
Packaging Details:
Plywood Case
Delivery Time:
30 Working Days
Payment Terms:
L/C,T/T
Product Description
Product Overview

The Automatic Variable Frequency Series Resonance Test Equipment uses a controlled variable frequency source to establish resonance with the reactor and the capacitance of the test object.

Depending on the control platform, the system may support automatic frequency sweeping, voltage regulation, measurement display, test data recording, and protection monitoring. These features help operators manage the test process and observe system status.

The exact automation functions vary by model and should be confirmed against the supplied technical specification.

Key Testing and Control Functions
  • Variable frequency adjustment.
  • Automatic resonance search, where supported.
  • Controlled voltage ramp-up.
  • Voltage and current monitoring.
  • Overvoltage and overcurrent protection.
  • Flashover or abnormal-condition protection, where supported.
  • Data recording and report export, if included.
Typical Applications
  • Cable testing laboratories.
  • Transformer factories.
  • GIS test facilities.
  • High-voltage equipment commissioning.
  • Electrical test equipment manufacturers.
Addressing Common Operational Challenges
  • Manual adjustment can increase operator workload.
  • Buyers need clear visibility into test voltage and operating status.
  • Inadequate protection or interlocking can create operational risks.
  • Different users need different reporting and data interfaces.
Frequently Asked Questions
Q1: Does every model support automatic resonance search?

No. This function depends on the control system and should be confirmed before ordering.

Q2: Can test data be exported?

Data export depends on the software and model. Specify the desired format and report fields.

Q3: What protection functions are available?

Common options include overvoltage, overcurrent, and abnormal-resonance protection. Confirm the actual protection logic and interlocks for the selected system.

Q4: Can the system be integrated into a laboratory control setup?

Integration may be possible, subject to available communication interfaces, software, and project requirements.

Q5: Does automatic control eliminate the need for an operator?

No. High-voltage tests still require trained personnel, appropriate safety procedures, and supervision.

Ask for the control-system specification and a demonstration of the functions available on your proposed model.

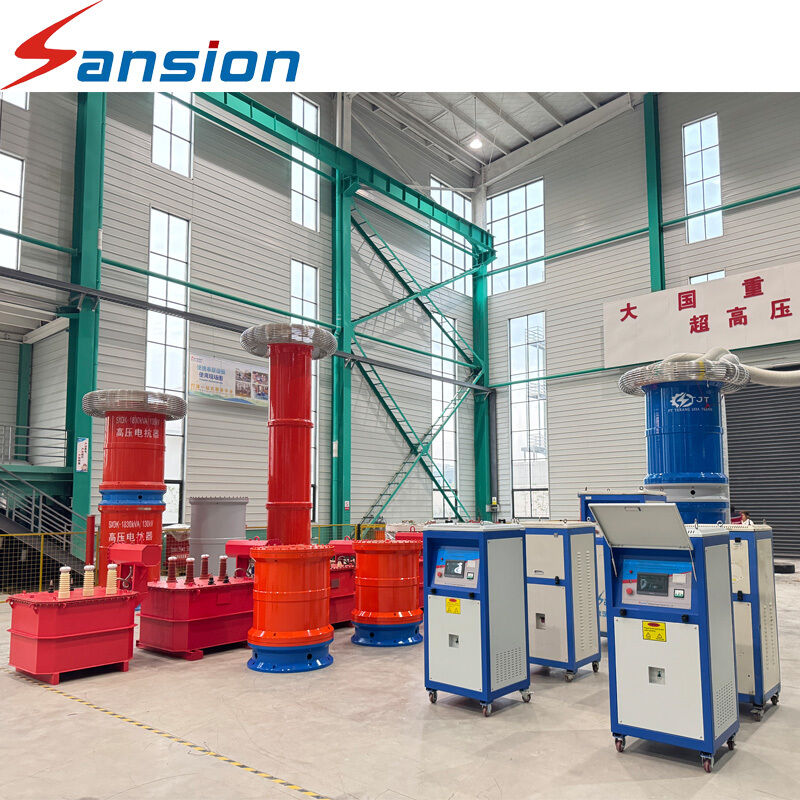

Automatic variable frequency series resonance test equipment with digital control panel and reactor unit
