Motor Test System
>

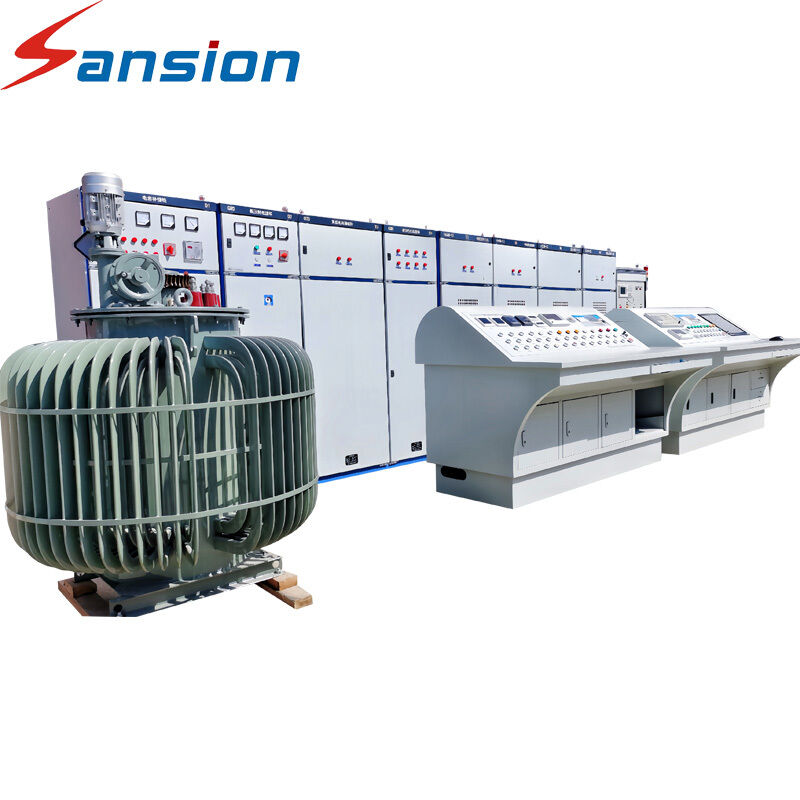

Computer Controlled DC Motor Test System Motor Comprehensive Test Bench
  • Computer Controlled DC Motor Test System Motor Comprehensive Test Bench
  • Computer Controlled DC Motor Test System Motor Comprehensive Test Bench
  • Computer Controlled DC Motor Test System Motor Comprehensive Test Bench
  • Computer Controlled DC Motor Test System Motor Comprehensive Test Bench

Computer Controlled DC Motor Test System Motor Comprehensive Test Bench

Product Details:
Place of Origin: Chnia
Brand Name: Sansion
Certification: CE SGS ISO9001
Detail Information
Place of Origin:
Chnia
Brand Name:
Sansion
Certification:
CE SGS ISO9001
Model NO.:
SXDJ
Max Diameter Of Workpiece:
2000mm
Mass Scope Of Workpiece:
1000kg
Type:
Strength Testing Machine
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
Digital
Control:
Manual/Auto At Customized
Weight:
500-1000Kg
Power Source:
AC380V
Oil Cylinder Position:
Under
Test Project1:
Hv/LV Motor Turn To Turn Withstand Voltage Test
Test Project2:
Hv/LV Motors Measurement Of No-Load Loss
Test Project3:
Hv/LV Motors Measurement Of No-Load Current
Test Project4:
Hv/LV Motors Cold Resistance Test
Test Project5:
Three/Single Phase Voltage/ Average Voltage Test
Test Project6:
Vibration Measurement
Test Project7:
Temperature Measurement
Test Project8:
Insulation Resistance Measurement
Test Project9:
Power Frequency Withstand Voltage Test
Test Project10:
Three/Single Phase Current/Average Current Test
Test Project11:
Torque And Speed Measurement
Test Project12:
Temperature Rise Test
Test Project13:
Load Test
Test Project14:
Blockage Test
Transport Package:
Plywood Case
Specification:
1000mm*600mm*560mm
Trademark:
Sansion
Origin:
China
HS Code:
9030339000
Production Capacity:
100 Units/Month
Highlight:

High Light

Highlight:

Automated DC motor test bench

,

DC motor comprehensive test system

,

computer controlled motor test system

Trading Information
Minimum Order Quantity:
1
Price:
US $1,000-50,000 /
Packaging Details:
plywood case
Payment Terms:
TT LC
Product Description
Automated DC Motor Comprehensive Test Bench
System Overview
The SXDJ DC Motor Comprehensive Test Bench is a specialized system equipment independently developed for comprehensive motor testing applications. This advanced system is designed for factory testing of various motors and can be extended to motor type test systems.
Engineered with advanced computer-controlled measurement technology, this test bench features significantly reduced installed capacity while delivering superior performance, reliability, and precision. The system offers excellent repeatability, energy efficiency, and exceptional cost-effectiveness.
Technical Specifications
Utilizing industrial computer control, the system integrates multiple measurement functions including resistance, insulation, withstand voltage, turn-to-turn, and no-load testing. The test bench provides fast testing speeds, high accuracy, user-friendly operation, and reliable performance.
Comprehensive Testing Capabilities
  • Measurement of winding resistance
  • Measurement of voltage ratio
  • Checking of phase displacement
  • Measurement of short-circuit impedance and load loss
  • Measurement of no-load loss and current
  • Dielectric routine tests (according to Um per IEC 60076-3)
  • Insulation test and functional verification of accessories
  • Tests on on-load tap changers, where appropriate
  • Auxiliary wiring insulation test
  • Check of the ratio and polarity of built-in transformers
  • Temperature-rise type test (IEC 60076-2)
  • Measurement of no-load loss and current at 90% and 110% of rated voltage
  • Low voltage motor AC applied withstand voltage testing
  • Low voltage motor turn-to-turn insulation testing
  • Low voltage three phase voltage, current balance testing
  • Bearing vibration testing
  • Cold Resistance testing
  • Low Starting Current measurement
  • Locked-rotor Current analysis
System Visualization
Computer Controlled DC Motor Test System Motor Comprehensive Test Bench 0
