Customized Motor Comprehensive Test System English Interface For Generator Testing

Name: Customized Motor Comprehensive Test System English Interface For Generator Testing
Brand: Sansion Power Electric Co., Ltd.
Price: 25.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/CNAS/ISO9001

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE/CNAS/ISO9001

Model NO.:

SXDJ

Max Diameter Of Workpiece:

2000mm

Mass Scope Of Workpiece:

1000kg

Type:

Strength Testing Machine

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual/Auto At Customized

Weight:

500-1000Kg

Power Source:

AC380V

Oil Cylinder Position:

Under

Test Project1:

Hv/LV Motor Turn To Turn Withstand Voltage Test

Test Project2:

Hv/LV Motors Measurement Of No-Load Loss

Test Project3:

Hv/LV Motors Measurement Of No-Load Current

Test Project4:

Hv/LV Motors Cold Resistance Test

Test Project5:

Three/Single Phase Voltage/ Average Voltage Test

Test Project6:

Vibration Measurement

Test Project7:

Temperature Measurement

Test Project8:

Insulation Resistance Measurement

Test Project9:

Power Frequency Withstand Voltage Test

Test Project10:

Three/Single Phase Current/Average Current Test

Test Project11:

Torque And Speed Measurement

Test Project12:

Temperature Rise Test

Test Project13:

Load Test

Test Project14:

Blockage Test

Transport Package:

Plywood Case

Specification:

1000mm*600mm*560mm

Trademark:

Sansion

Origin:

China

HS Code:

9030339000

Production Capacity:

100 Units/Month

Highlight:

High Light

Highlight:

Customized Comprehensive Test System

English Interface Motor Comprehensive Tester

Trading Information

Minimum Order Quantity:

1 Set

Price:

US $1,000-50,000 /

Packaging Details:

Plywood Case

Payment Terms:

L/C T/T

Supply Ability:

100 Units/Month

Product Description

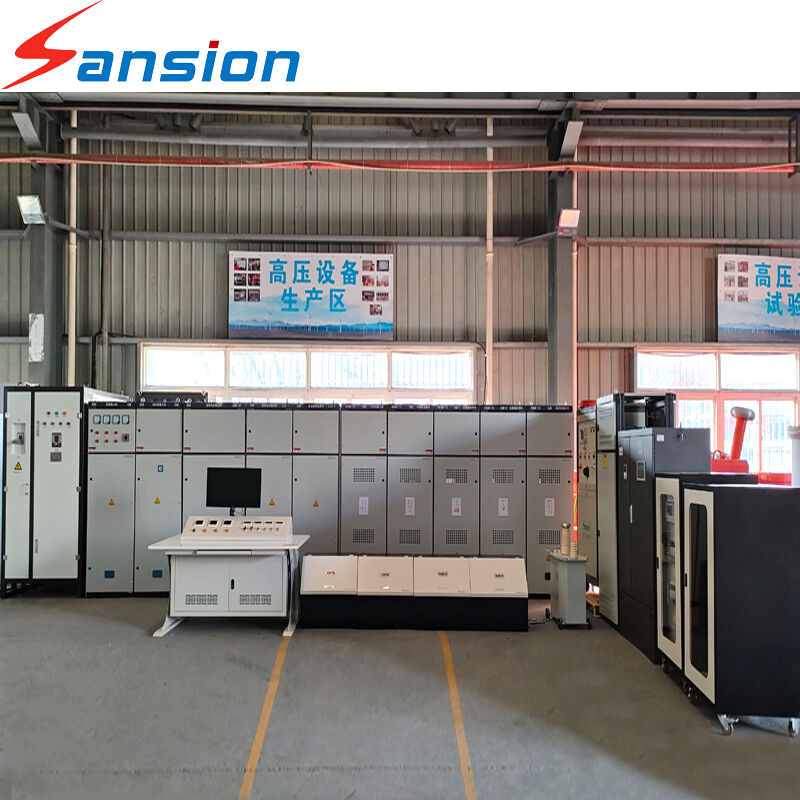

Motor Comprehensive Test System for Generator Testing

The SXDJ Motor Comprehensive Tester is designed for ex-factory and post-maintenance testing of AC motors, DC motors, and variable frequency motors with capacities ranging from 0-10,000kW and voltage levels from 0-10kV.

System Integration

This comprehensive system integrates industrial PC, power source system, control system, sensors, signal conditioning modules, data acquisition hardware and software, numerical computing software, graphical display and operation software, test report generation, and waveform and measurement results storage and printing capabilities.

Key System Features

English Interface - Fully English interface with auto-printing and easy operation

Portable Design - Motor AC hi-pot testing component features portable design for easy mobility

High Voltage Capability - For HV motors (630kW-9000kW, 6kV-10000V) with 10kV booster, HV CT/PT equipment

Technical Specifications

Core Testing & Measurement Capabilities

Electrical Insulation & Dielectric Tests	Insulation Resistance Test (IR Test) Power Frequency Withstand Voltage Test (Hi-Pot Test) - for both high-voltage and low-voltage motors Turn-to-Turn Impulse Withstand Voltage Test (Surge Test) - for both high-voltage and low-voltage motors
No-Load Performance Analysis	No-Load Loss Measurement (Iron Loss & Friction/Windage Loss) No-Load Current Measurement (Three-Phase & Single-Phase) No-Load Voltage-Current Characteristics
Electrical Parameter Measurement	Voltage: Three-phase / single-phase voltage (RMS, average, unbalance rate) Current: Three-phase / single-phase current (RMS, average, unbalance rate) Winding Resistance: DC resistance measurement (per phase, with temperature compensation) Power & Efficiency: Input power, power factor, calculated no-load efficiency
Mechanical & Thermal Monitoring	Vibration Analysis: Vibration velocity/displacement measurement (extendable with frequency spectrum analysis) Temperature Measurement: Winding temperature (calculated or via sensor), bearing temperature, ambient temperature

All-in-One Motor Test Solution (300kW, Multi-Voltage)

Complete Test Suite - No-load (loss & imbalance), winding resistance, turn-to-turn, insulation, and power frequency withstand tests

Smart Data Handling - Real-time display, menu-driven parameter setting, and full printout capability

High-Precision Core - Advanced MCU, scientific algorithms, high-speed A/D conversion, and precision signal conditioning

Flexible & User-Friendly - Operate via PLC or manually with intuitive English interface and guided menus

About Sansion Power Electric

Established in 2005, Sansion Power Electric brings over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace, and other critical sectors.

The company comprises R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and sales departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.

Certifications & Quality Assurance

Packing & Delivery

Customer Engagement

Frequently Asked Questions

Is your company a sales company or a manufacturer?

Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.

Are goods in stock? Can they be customized? What is the delivery time?

Goods are made to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.

Is the quality guaranteed?

We use imported components extensively and conduct three quality inspections before shipment. Export products are uniformly packed in non-fumigation wooden boxes.

What are the after-sales terms?

We offer free consulting service, one-year warranty, and utilize various methods including email communication, video calls, and on-site technical support to resolve any after-sales issues promptly.

What are the cooperative countries or regions?

Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
