Transformer Comprehensive Test System for Winding Resistance/Turns Ratio Test

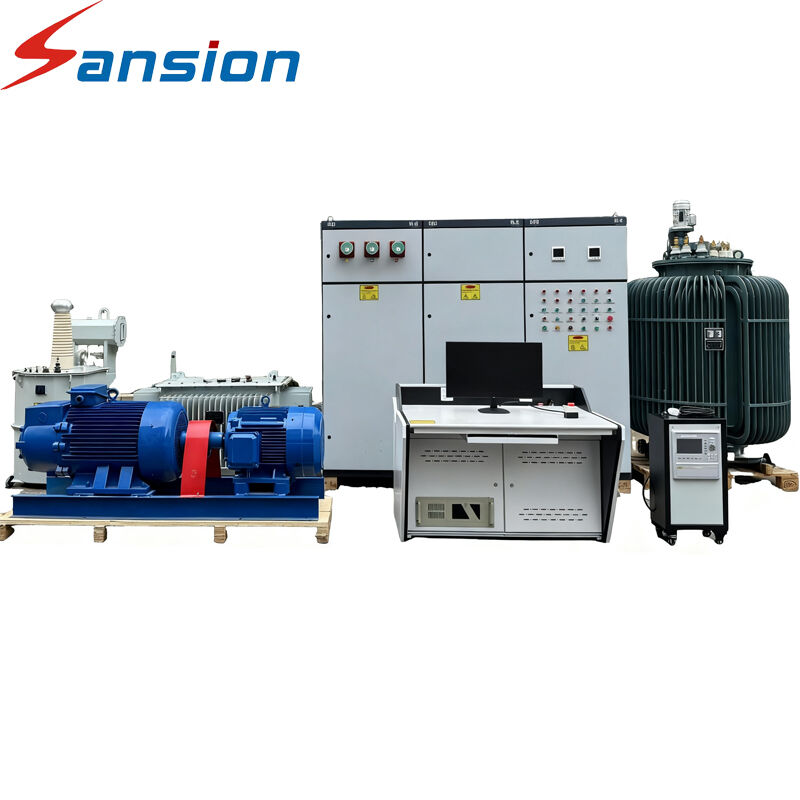

The SXBZ-III series Transformer Comprehensive Test System is engineered for comprehensive factory acceptance and maintenance testing of various transformers. This advanced system finds extensive application across power supply and distribution networks, transformer manufacturing facilities, maintenance centers, and industrial enterprises.
System Features
- All data monitoring complies with relevant international standards, with a high-precision power analyzer ensuring measurement accuracy
- Primary circuit, secondary loop, and interlocking protection mechanism with split-type structure for enhanced operational safety
- Utilizes three-meter method (4P3W) with six independent 0.05-class current transformers for improved test stability and precision
- Advanced frequency control system with adjustable motor speed for enhanced testing efficiency and data accuracy
- Integrated waveform analysis for transformers within the power analyzer
Comprehensive Test Capabilities
- Transformer insulation resistance measurement
- Winding resistance test
- Ratio and vector group verification
- No-load and load loss assessment
- C and tan delta measurement
- Impedance and load loss evaluation
- Power frequency voltage withstand test
- Induced withstand voltage test (with PD test for 110kV)
- Impulse withstand test (full and chopped waves)
- Oil condition analysis (chemical, physical, electrical, and gas tests)
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in research, development, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse sectors including power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical industry, and aerospace.
Our integrated operations include R&D department, instrument manufacturing workshop, high-voltage workshop, sample exhibition room, HV testing laboratory, quality control department, and comprehensive administrative offices. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and strict compliance with international IEC and Chinese state standards.
Core Product Portfolio
- HV Hipot Test Set System
- Transformer Test Equipment
- HV Switchgear Test Set
- Relay Protection Tester
- CT/PT Tester
- SF6/Oil Tester
- Transmission Line Test System
- Insulation Resistance Tester
- Earth Resistance Tester
Quality Certifications
Our commitment to quality is demonstrated through ISO9001 certification and strict adherence to international IEC standards. Each product undergoes rigorous testing and validation processes to ensure reliability and performance.
Global Operations
Located in Wuhan City, China's provincial capital, we facilitate efficient shipping via air or ocean transport. Standard manufacturing lead times range from 3-7 working days, with OEM services available for customized requirements. We welcome partnerships with clients worldwide.
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. operates as an integrated industrial and trading enterprise. We have our own factory, overseeing production and sales independently. Established in 2005, we possess over twenty years of manufacturing expertise, supported by reliable production lines, dedicated testing facilities, and an in-house R&D center.
Are goods kept in stock? Can they be customized, and what is the typical delivery time?
Products are generally made to order, allowing us to customize according to specific customer requirements using the latest technology. Under normal circumstances, delivery can be completed within 10 working days.
How is quality assured?
To ensure high quality, we extensively use imported components. Each product undergoes three rounds of inspection before shipment. Export packaging is standardized using fumigation-free wooden crates for secure transportation.
What after-sales support do you provide?
We offer complimentary technical consultation and a one-year warranty. Support is provided through multiple channels including email, video calls, and on-site technical assistance when necessary, ensuring timely resolution of any after-sales issues.
Which countries or regions do you currently supply?
Our products have been successfully exported to numerous markets, including the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
