Home > Products >
Transformer Test Bench
>

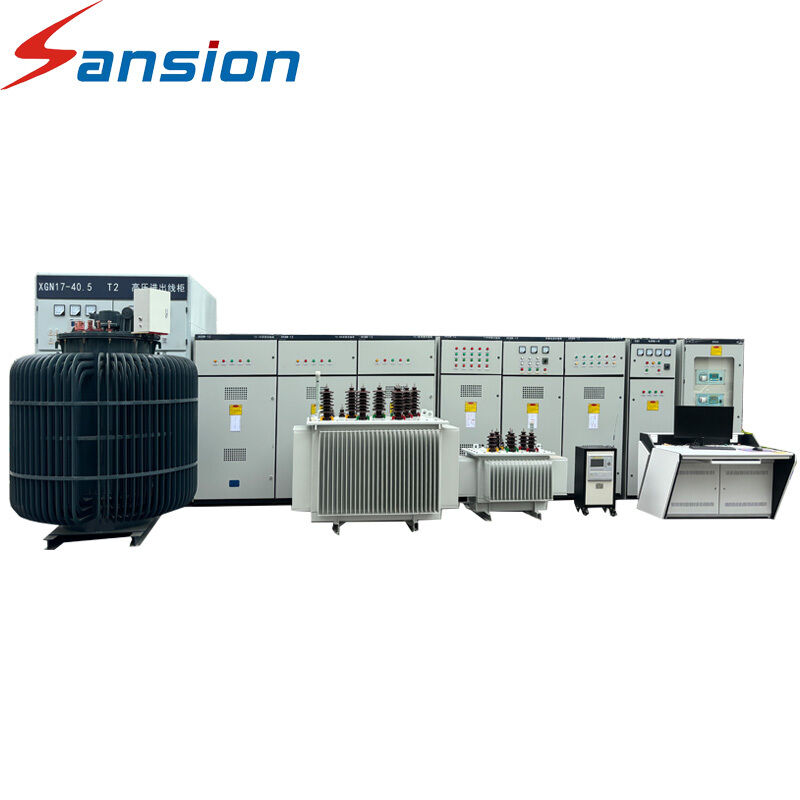

Universal Integrated Transformer Test Bench Transformer Test Console Customized
  • Universal Integrated Transformer Test Bench Transformer Test Console Customized
  • Universal Integrated Transformer Test Bench Transformer Test Console Customized
  • Universal Integrated Transformer Test Bench Transformer Test Console Customized
  • Universal Integrated Transformer Test Bench Transformer Test Console Customized

Universal Integrated Transformer Test Bench Transformer Test Console Customized

Product Details:
Place of Origin: Chnia
Brand Name: Sansion
Certification: CE SGS ISO9001
Detail Information
Place of Origin:
Chnia
Brand Name:
Sansion
Certification:
CE SGS ISO9001
Model NO.:
SXBZ-III
Max Diameter Of Workpiece:
2000mm
Mass Scope Of Workpiece:
1000kg
Type:
Universal Testing Machine
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
LCD Display
Control:
Computer Control
Weight:
500-1000Kg
Power Source:
AC380V
Origin:
China
HS Code:
9030849000
Production Capacity:
100 Units/Month
Highlight:

High Light

Highlight:

Universal Integrated Transformer Test Bench

,

Computer Control Transformer Test Console

Trading Information
Minimum Order Quantity:
1
Packaging Details:
plywood case
Payment Terms:
TT LC
Product Description
Integrated Transformer Test Bench Universal Transformer Test Console
The SXBZ-III series Transformer Test Console is engineered for comprehensive factory acceptance and maintenance testing of various transformers. This advanced system finds extensive application across power supply and distribution networks, transformer manufacturing facilities, maintenance centers, and industrial enterprises.
System Features
  • Large backlit LCD screen with clear, intuitive operation and display classification
  • Comprehensive testing capabilities including no-load loss, load loss, DC resistance, TTR, AC hipot, and induced voltage tests
  • Digital voltage and current meters with direct reading pointer meters and printed test results
  • Voltage withstand test with audible and visual alarms and timing functions
Comprehensive Test Capabilities
  • Insulation resistance test
  • DC winding resistance measurement
  • Transformer ratio test
  • No-load and load current/loss measurement
  • Capacitance and tan delta assessment
  • Short-circuit impedance and load loss test
  • AC withstand voltage test
  • Induced overvoltage test (with PD test for 110kV transformers)
  • Impulse testing (full and chopped wave)
  • Comprehensive oil testing (acidity, dew point, flash point, dielectric strength, C&tanδ, DGA)
About Sansion Power Electric
Universal Integrated Transformer Test Bench Transformer Test Console Customized 0
Established in 2005, Sansion Power Electric brings over 20 years of expertise in research, development, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse sectors including power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical industry, and aerospace.
Our integrated operations include R&D department, instrument manufacturing workshop, high-voltage workshop, sample exhibition room, HV testing laboratory, quality control department, and comprehensive administrative offices. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and strict compliance with international IEC and Chinese state standards.
Core Product Portfolio
  • HV Hipot Test Set System
  • Transformer Test Equipment
  • HV Switchgear Test Set
  • Relay Protection Tester
  • CT/PT Tester
  • SF6/Oil Tester
  • Transmission Line Test System
  • Insulation Resistance Tester
  • Earth Resistance Tester
Universal Integrated Transformer Test Bench Transformer Test Console Customized 1
Quality Certifications
Our commitment to quality is demonstrated through ISO9001 certification and strict adherence to international IEC standards. Each product undergoes rigorous testing and validation processes to ensure reliability and performance.
Universal Integrated Transformer Test Bench Transformer Test Console Customized 2 Universal Integrated Transformer Test Bench Transformer Test Console Customized 3
Global Operations
Located in Wuhan City, China's provincial capital, we facilitate efficient shipping via air or ocean transport. Standard manufacturing lead times range from 3-7 working days, with OEM services available for customized requirements. We welcome partnerships with clients worldwide.
Universal Integrated Transformer Test Bench Transformer Test Console Customized 4 Universal Integrated Transformer Test Bench Transformer Test Console Customized 5
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. operates as an integrated industrial and trading enterprise. We have our own factory, overseeing production and sales independently. Established in 2005, we possess over twenty years of manufacturing expertise, supported by reliable production lines, dedicated testing facilities, and an in-house R&D center.
Are goods kept in stock? Can they be customized, and what is the typical delivery time?
Products are generally made to order, allowing us to customize according to specific customer requirements using the latest technology. Under normal circumstances, delivery can be completed within 10 working days.
How is quality assured?
To ensure high quality, we extensively use imported components. Each product undergoes three rounds of inspection before shipment. Export packaging is standardized using fumigation-free wooden crates for secure transportation.
What after-sales support do you provide?
We offer complimentary technical consultation and a one-year warranty. Support is provided through multiple channels including email, video calls, and on-site technical assistance when necessary, ensuring timely resolution of any after-sales issues.
Which countries or regions do you currently supply?
Our products have been successfully exported to numerous markets, including the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
