AC DC Hipot Test Set Power Frequency Withstand Voltage Test Set
Professional dielectric strength testing equipment for comprehensive electrical insulation testing applications.
Product Overview

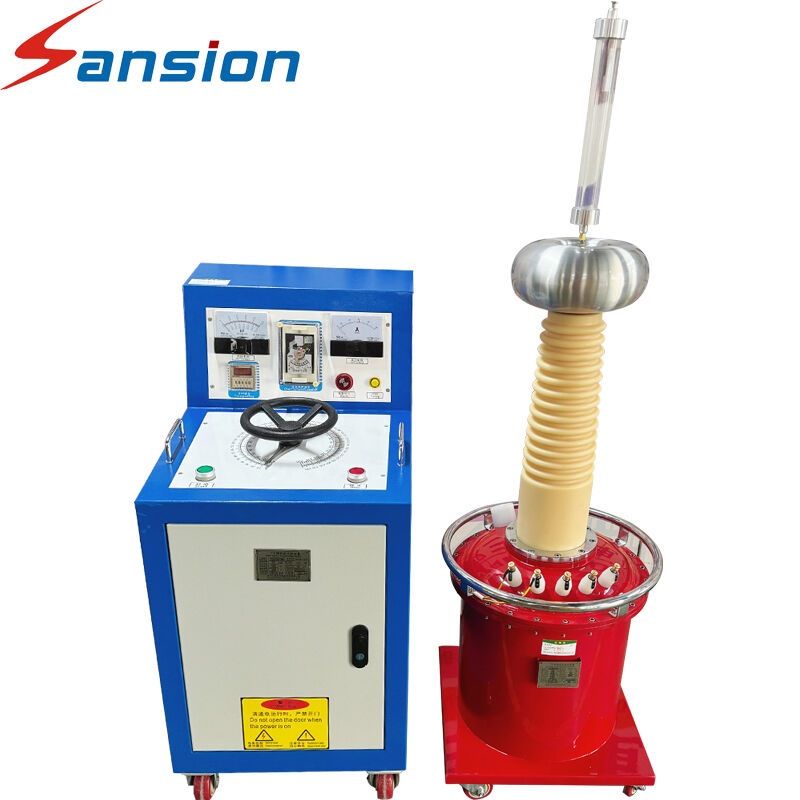

The SXTC Series Power Frequency Withstand Voltage Test Set is designed for dielectric withstand voltage testing, consisting of a manual controller and test transformer available in dry, oil, gas, ultra-light, insulated, or no partial discharge types. This equipment delivers superior performance, reliability, and user-friendly operation with easy maintenance.
Key Features
- First-time manufactured HV bushing design
- Complete isolation between bushing and gas tank with imported "O" type sealing rings to prevent leakage
- Sleeping core type design for enhanced seismic resistance
- All products undergo 1.1 times induction withstand voltage testing
- Pure SF6 insulating medium
- HV & LV cables made with high-strength polyester and oxygen-free copper enameled wires
- Core constructed with new WISCO two-silicon cold-rolled silicon steel strip
Technical Specifications
- Input voltage: AC 220(380)V (customizable)
- LV output: AC 0-250(430)V
- LV current: 0-5/10/15/50A (customizable)
- Output capacity: 0-3/5/10/15 kVA (customizable)
- HV output: 0-50/100/150/200 kV (customizable)
- HV current: 0-50/100/150/200/500/1000/2000mA (customizable)
- Timing range: 0-9999S
- Working temperature: -20ºC to 50ºC
- Voltage precision: ≤1.5% ±1 digit (F.S)
- Current precision: ≤1.5% ±1 digit (F.S)
SXTC-M Control Unit Models
| Model |
Input Voltage (V) |
Capacity (KVA) |
Rated Output Voltage (V) |
Rated Output Current (A) |
HV Voltmeter KV/V |
Oversize m³(L×W×H) |
| SXTC-M05 |
220 |
0.5 |
200 |
2.5 |
50/100 |
20×30×20 |
| SXTC-M15 |
220 |
1.5 |
200 |
7.5 |
50/100 |
26×36×24 |
| SXTC-M3 |
220 |
3 |
200 |
15 |
50/100 |
26×42×24 |
| SXTC-M5 |
220 |
5 |
200 |
25 |
50/100 |
60×45×37 |
| SXTC-M6 |
220 |
6 |
200 |
30 |
50/100 |
53×40×60 |
| SXTC-M10 |
220 |
10 |
200 |
50/25 |
(50/100)/100 |
53×40×65 |
| SXTC-M15 |
380 |
15 |
400 |
37.5 |
(50/100/150)/100 |
53×40×70 |
| SXTC-M20 |
380 |
20 |
400 |
50 |
(50/100/150)/100 |
53×43×84 |
| SXTC-M25 |
380 |
25 |
400 |
62.5 |
(50/100/150)/100 |
53×45×90 |
| SXTC-M30 |
380 |
30 |
400 |
67.5 |
(50/100/150)/100 |
65×55×115 |
| SXTC-M40 |
380 |
40 |
400 |
100 |
(50/100/150)/100 |
70×60×115 |
| SXTC-M50 |
380 |
50 |
400 |
125 |
(50/100/150)/100 |
70×60×115 |
Company Profile
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, and aerospace.
Our facility includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and sales departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.
Certifications
Packing & Delivery
Customer Visit
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, producing and selling our products directly. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: We manufacture products to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We ensure quality by using imported components and conducting three quality inspections before shipment. All exports are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We offer free consulting service, one-year warranty, and comprehensive after-sales support through email communication, video calls, and on-site technical assistance to resolve any issues promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
