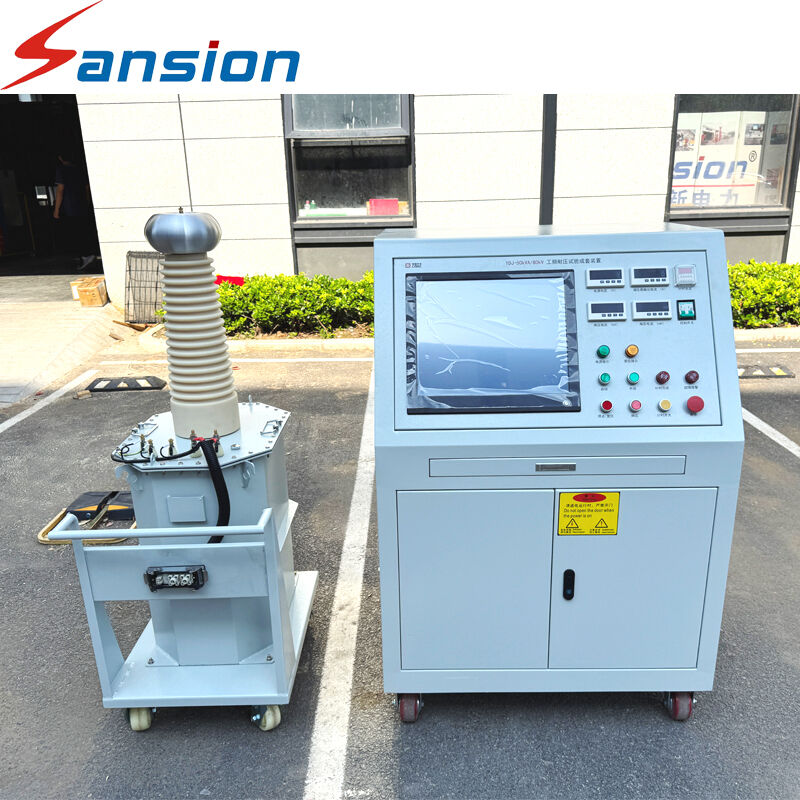

50kVA AC Hipot Power Frequency Withstand Test Set
Comprehensive dielectric strength testing solution for transformers, GIS systems, and high voltage cables
Product Overview
The SXTC Series AC Hipot Power Frequency Withstand Test Set represents the latest generation of high-voltage testing equipment. Featuring an innovative single-frame core structure with coaxially wound primary and high-voltage windings, this design minimizes magnetic leakage and enhances winding coupling efficiency. Compact, versatile, and user-friendly, this portable test set is ideal for on-site insulation performance testing of various high-voltage electrical equipment in power systems and industrial applications.
This essential testing instrument supports both AC power frequency withstand voltage tests and can be configured as a DC high-voltage testing device by integrating capacitors, silicon rectifiers, and high-voltage DC microammeters of equivalent voltage rating and capacity for accurate DC leakage current measurement.
Key Features
- Oil-immersed high voltage transformer: Large capacity, cost-effective, easy maintenance
- Inflatable high voltage test transformer: Superior interrupter resistance, lightweight design
- Dry type high voltage testing transformer: Lightweight, compact volume, reversible operation
- Series type high voltage testing transformer: Compact size, low voltage requirements, easy transport and installation
Technical Specifications
Environmental Requirements
- Input voltage: AC 220V 50Hz
- Ambient temperature: -40℃ to 40℃
- Relative humidity: ≤85% (at 25℃ ambient temperature)
- Corrosive gas-free environment
- Explosive gas-free environment
- Protected from rainwater ingress
SXTC-M Control Unit Parameters
| Model |
Input Voltage (V) |
Capacity (KVA) |
Rated Output Voltage (V) |
Current (A) |
HV Voltmeter KV/V |
Dimensions m³ (L×W×H) |
| SXTC-M05 |
220 |
0.5 |
200 |
2.5 |
50/100 |
20×30×20 |
| SXTC-M15 |
220 |
1.5 |
200 |
7.5 |
50/100 |
26×36×24 |
| SXTC-M3 |
220 |
3 |
200 |
15 |
50/100 |
26×42×24 |
| SXTC-M5 |
220 |
5 |
200 |
25 |
50/100 |
60×45×37 |
| SXTC-M6 |
220 |
6 |
200 |
30 |
50/100 |
53×40×60 |
| SXTC-M10 |
220 |
10 |
200 |
50/25 |
(50/100)/100 |
53×40×65 |
| SXTC-M15 |
380 |
15 |
400 |
37.5 |
(50/100/150)/100 |
53×40×70 |
| SXTC-M20 |
380 |
20 |
400 |
50 |
(50/100/150)/100 |
53×43×84 |
| SXTC-M25 |
380 |
25 |
400 |
62.5 |
(50/100/150)/100 |
53×45×90 |
| SXTC-M30 |
380 |
30 |
400 |
67.5 |
(50/100/150)/100 |
65×55×115 |
| SXTC-M40 |
380 |
40 |
400 |
100 |
(50/100/150)/100 |
70×60×115 |
| SXTC-M50 |
380 |
50 |
400 |
125 |
(50/100/150)/100 |
70×60×115 |
Manufacturer Profile
Sansion Power Electric, established in 2005, brings over 20 years of expertise in research, development, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, and aerospace.
Our comprehensive operations include R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, HV testing laboratories, quality control departments, and sales teams. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.
Certifications
Packaging & Delivery
Customer Engagement
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, operating as a self-produced and self-sold manufacturer. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Are goods in stock, can they be customized, and what is the delivery time?
A: We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We ensure quality by using imported components extensively. All products undergo three quality inspections before shipment and are packed in export-standard non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We provide free consulting services, one-year warranty, and comprehensive after-sales support through email communication, video calls, and on-site technical assistance to resolve any issues promptly.
Q5: What countries or regions do you serve?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and many other countries and regions.
