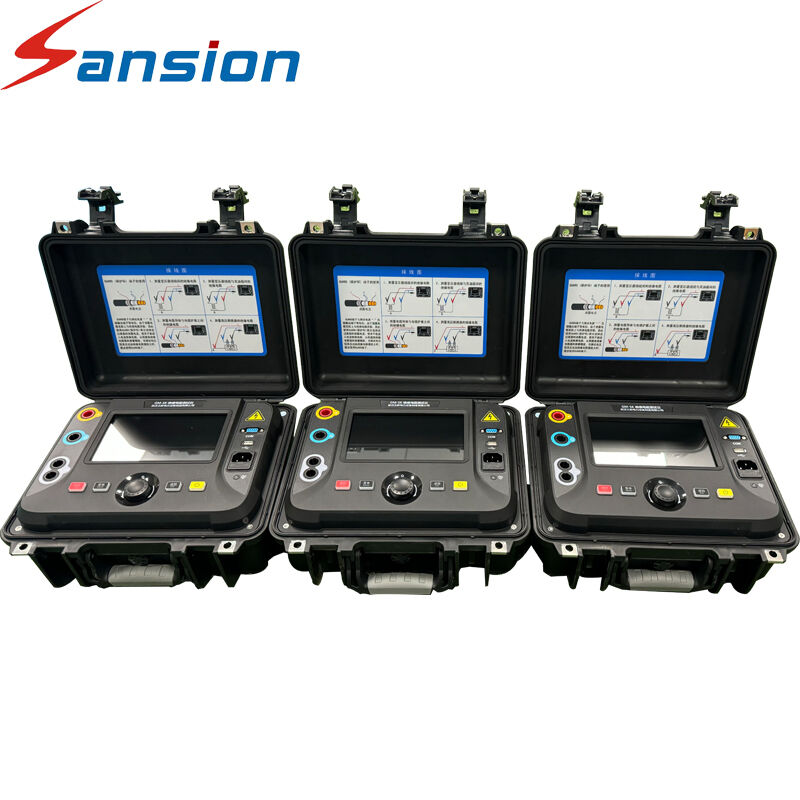

10kV Insulation Resistance Tester Megohmmeter
This professional DC test instrument is designed to check insulation resistance of electrical equipment, household appliances, and electrical circuits to ground and between phases. It ensures equipment operates in normal condition while preventing accidents like electric shocks and equipment damage.
Key Features
- Auto discharge function for enhanced safety
- LCD backlight display
- Auto power off to extend battery life
- Simultaneous dual display (voltage range and insulation resistance)
- Over-range indication for insulation resistance & voltage
- Overload protection
- Low battery indication for measurement accuracy
- Portable design suitable for field work
Technical Specifications
| Range |
500V |
1000V |
2500V |
5000V |
| Measurement Range |
0.0-99.9MΩ
100-999MΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ
10.0-99.9GΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ
10.0-99.9GΩ
100-1000GΩ(1TΩ) |
| Accuracy |
±5%rdg ±3dgt |
±5%rdg ±3dgt |
±5%rdg ±3dgt |
±5%rdg ±3dgt
±20%rdg (Above 100G) |
| Short-circuit Current |
About 1.5mA |
| Rated Grid Measurement Current |
At 0.5MΩ load: 1mA-1.2mA |
At 1MΩ load: 1mA-1.2mA |
At 2.5MΩ load: 1mA-1.2mA |
At 5MΩ load: 1mA-1.2mA |
| Open Circuit Voltage |
500VDC +30%/-0% |
1000VDC +20%/-0% |
2500VDC +20%/-0% |
5000VDC +20%/-0% |
| Operating Conditions |
Temperature: 0-40°C, Humidity: ≤85% |
| Storage Conditions |
Temperature: -20-60°C, Humidity: ≤90% |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, and aerospace.
Our facility includes R&D departments, manufacturing workshops, high-voltage testing laboratories, quality control departments, and comprehensive sales and support teams. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality certification and ensure all products comply with international IEC and Chinese state standards.
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, producing and selling our products directly. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Are goods in stock, can they be customized, and what is the delivery time?
We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We use imported components extensively and conduct three quality inspections before shipment. All exports are packed in non-fumigation wooden boxes to ensure product integrity.
Q4: What are the after-sales terms?
We provide free consulting services, one-year warranty, and comprehensive support through email communication, video calls, and technical assistance to resolve any after-sales issues promptly.
Q5: Which countries or regions do you serve?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
