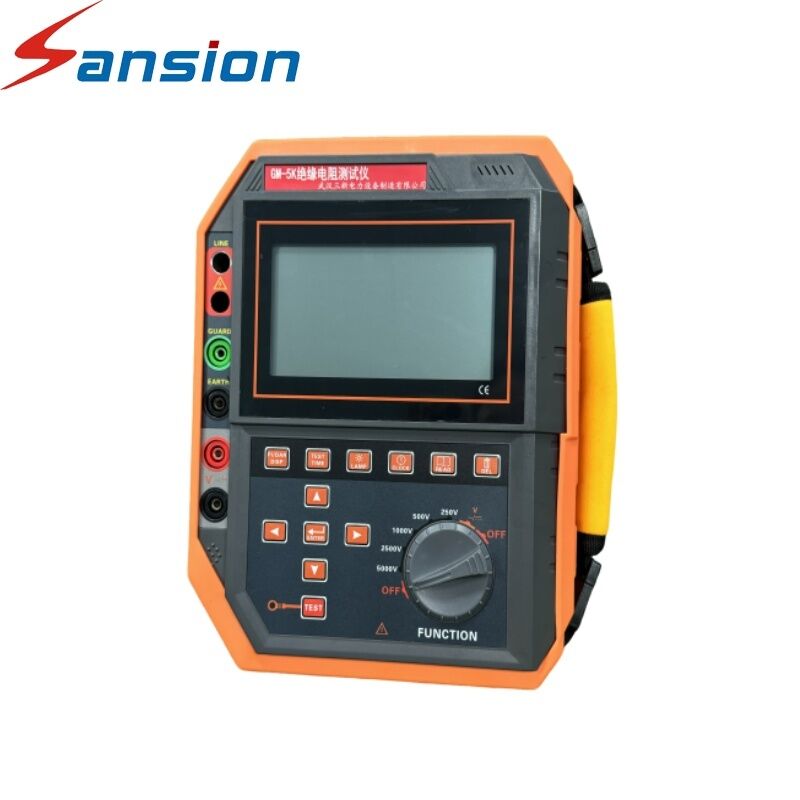

High Precision Hipot Insulation Resistance Meter
Professional motor quality parameter testing instrument with advanced data analysis capabilities for comprehensive insulation resistance measurement.
Product Overview
This high-voltage insulation resistance tester (megohm meter) features multiple test modes including dielectric discharge, external voltage, and step voltage testing. The instrument's box-type design with plastic mold injection construction ensures high insulation performance, while the 5.6-inch color LCD screen with bilingual Chinese/English interface provides intuitive operation.
Key Features
- Double shell design with 5.6-inch color LCD display
- Bilingual Chinese/English operation interface with simple button controls
- Data storage, access, retention, and transmission capabilities
- High resolution measurement with convenient operation and portability
- Shock-proof, dust-proof, and moisture-proof construction
- High-precision micro-current measurement and digital boost systems
- Automatic discharge circuit for safety
- Simple connection with high-voltage line, signal line, and shielding line
Technical Specifications
| Parameter |
500V |
1000V |
2500V |
5000V |
| Measurement Range |
0.0-99.9MΩ
100-999MΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ
10.0-99.9GΩ |
0.0-99.9MΩ
100-999MΩ
1.00-1.99GΩ
10.0-99.9GΩ
100-1000GΩ(1TΩ) |
| Accuracy |
±5%rdg ± 3dgt |
±5%rdg ± 3dgt |
±5%rdg ± 3dgt |
±5%rdg ± 3dgt
±20%rdg (Above 100G) |
| Short-circuit Current |
Approximately 1.5mA |
| Rated Grid Measurement Current |
1mA-1.2mA at 0.5MΩ load |
1mA-1.2mA at 1MΩ load |
1mA-1.2mA at 2.5MΩ load |
1mA-1.2mA at 5MΩ load |
| Open Circuit Voltage |
500VDC+30% Within -0% |
1000VDC+20% Within -0% |
2500VDC+20% Within -0% |
5000VDC+20% Within -0% |
| Operating Conditions |
-10ºC to 40ºC; No condensation below 80%rh |
| Storage Conditions |
-20ºC to 60ºC; No condensation below 70%rh |
Applications
Ideal for measuring resistance values of various insulation materials, sleeve insulation, transformer insulation, motor/generator insulation, cable insulation, and electrical equipment insulation resistance. The polarization index and absorption ratio measurements help determine insulation moisture content in tested equipment.
Industry Applications
Widely used in telecommunications, electric power, construction, meteorology, computer rooms, oil fields, universities, industrial and mining enterprises, and various sectors utilizing electrical power.
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical, aerospace, and other critical industries.
Our facility includes R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, testing laboratories, and quality control departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.
Certifications
Packaging & Delivery
Customer Visits
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and what is the delivery time?
A: We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We use imported components extensively and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We offer free consulting service, one-year warranty, and multiple support methods including email communication, video calls, and technical support to resolve after-sales issues promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
