Digital Zinc Oxide Lightning Arrester Tester
High Accuracy Automatic Leakage Current Diagnostic Tool for electrical performance testing of zinc oxide arresters across all voltage levels.
Product Overview

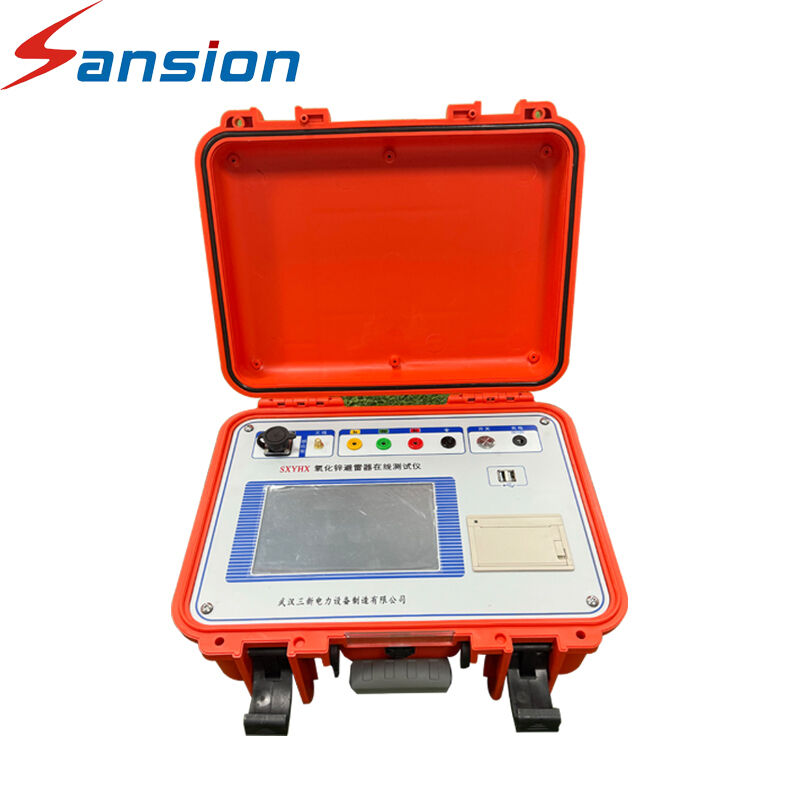

The SXYHX series Zinc Oxide Lightning Arrester Tester is a specialized instrument designed for comprehensive electrical performance testing of zinc oxide arresters. This advanced diagnostic tool detects internal insulation moisture, valve aging, and other critical defects in both energized and de-energized equipment.
Key Features
- Microcomputer-controlled sampling and measurement processes
- Measures full current, resistive current, capacitive current, and harmonics
- Displays power frequency reference voltage and active power measurements
- Large LCD screen with intuitive menu interface and field wiring display
- Advanced digital waveform analysis and harmonic analysis technology
- Digital filtering for accurate and stable test results
- Real-time voltage and current waveform display
Technical Specifications
| Parameter |
Specification |
| Reference voltage input range (peak value) |
10V～200V |
| Full leakage current measurement range (peak value) |
100uA～8mA |
| Resistive current measurement range (peak value) |
100uA～8mA |
| Capacitive current measurement range (peak value) |
100uA～8mA |
| Angle measurement range |
0°～90° |
| Power consumption |
4W |
| Accuracy |
±(reading×5% +5d)(harmonic wave current < 2mA) |
| AC power supply |
AC220V ±10%, 50Hz ±1% |
Standard Accessories
| Serial Number |
Name |
Amount |
| 1 |
Mainframe |
One |
| 2 |
Voltage signal sampling line |
One |
| 3 |
Current signal sampling line |
One |
| 4 |
Power line |
One |
| 5 |
Fuse |
Two |
| 6 |
Special protector |
One |
| 7 |
Printing paper |
Two |
| 8 |
Specification |
One |
| 9 |
Inspection Report |
One |
| 10 |
Certification |
One |
Manufacturer Profile
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve critical industries including power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical industry, and aerospace.
Our facility includes dedicated R&D departments, manufacturing workshops, high-voltage testing laboratories, and quality control centers. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products comply with international IEC and Chinese state standards.
Product Portfolio
- HV Hipot Test Set System
- Transformer Test Equipment
- HV Switchgear Test Set
- Relay Protection Tester
- CT/PT Tester
- SF6/Oil Tester
- Transmission Line Test System
- Insulation Resistance Tester
- Earth Resistance Tester
Quality Certifications
Sansion Power Electric maintains comprehensive quality assurance with ISO9001 certification and strict adherence to international IEC standards. Our manufacturing process incorporates imported components and rigorous three-stage quality inspection protocols.
Packaging & Delivery
Standard manufacturing lead time is 3-7 working days from order placement. Located in Wuhan City, China, we facilitate efficient shipping via air or ocean freight. Custom OEM services available to meet specific requirements.
Customer Engagement
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005. We maintain reliable production lines, test rooms, and R&D centers with twenty years of production experience.
Q2: Are goods in stock? Can they be customized? What is the delivery time?
A: We manufacture to order according to customer specifications using the latest technology. Standard delivery time is within 10 working days.
Q3: Is the quality guaranteed?
A: We use imported components and conduct three quality inspections before shipment. All exports are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We provide free consulting service, one-year warranty, and comprehensive support through email, video calls, and on-site technical assistance to resolve any after-sales issues promptly.
Q5: Which countries or regions do you serve?
A: Our products are successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other global markets.
Q6: In which fields can your product be applied?
A: Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Our products incorporate advanced international technologies and have earned widespread acclaim from partners worldwide.
