Portable High Accuracy Moa Metal Zinc Oxide Arrester Test Resistance Current Analyzer

Name: Portable High Accuracy Moa Metal Zinc Oxide Arrester Test Resistance Current Analyzer
Brand: Sansion Power Electric Co., Ltd.
Price: 218.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/CNAS/ISO9001

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE/CNAS/ISO9001

Model NO.:

SXYHX

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Oxide Arrester (on-Line) Tester

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual Control

Weight:

0-100Kg

Power Source:

AC220V

Oil Cylinder Position:

Without

Application 1:

Condition Monitorin

Application 2:

Insulation Diagnosi

Application 3:

Aging Assessment

Application 4:

Preventive Maintenance

Application 5:

Field Testing

Application 6:

Substation Equipment

Transport Package:

Plywood Case

Specification:

ISO9001 SGS

Trademark:

Sansion

Origin:

China

HS Code:

9030332000

Production Capacity:

100 Units/Month

Highlight:

High Light

Highlight:

Digital Electrified Zinc Oxide Arrester Tester

Surge Arrester Diagnostic Tester

Trading Information

Minimum Order Quantity:

1 Set

Price:

US $945-1,435 / Set

Packaging Details:

Plywood Case

Payment Terms:

L/C T/T

Supply Ability:

100 Units/Month

Product Description

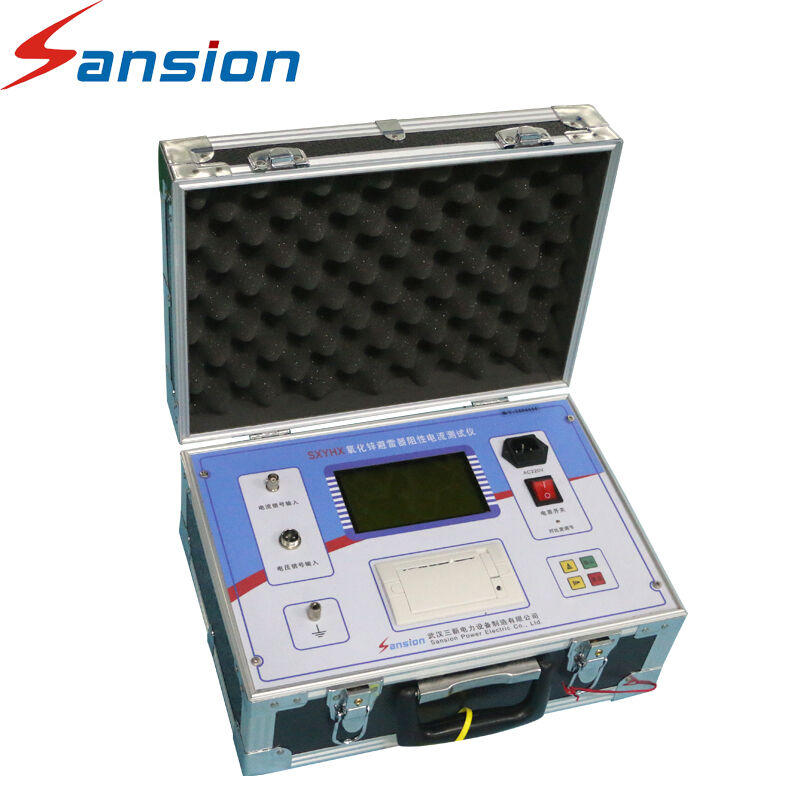

Portable High Accuracy MOA Metal Zinc Oxide Arrester Test Resistance Current Analyzer

Product Overview

The SXYHX series MOA Metal Zinc Oxide Arrester Test Resistance Current Analyzer is a specialized instrument designed for field and laboratory testing of various electrical parameters in arresters. This advanced device utilizes microcomputer sampling and control technology to measure full current, third harmonic, resistive current, resistive current peak value, capacitive current, active power, and other critical parameters under power frequency voltage.

Key Features

Large LCD display with intuitive English menu interface for user-friendly operation
High-precision sampling and processing circuits with advanced Fourier harmonic analysis technology
Unique high-speed magnetically isolated digital sensor for direct voltage and current signal acquisition
Impedance current peak output and phase-angle calibration for enhanced measurement precision
Integrated rechargeable battery, real-time clock/calendar, and compact printer
Storage capacity for up to 120 measurement records
Compact, lightweight integrated design for easy field portability and operation

Technical Specifications

Full Current Range	0~10mA	Accuracy: ±(Readings×5%+5uA)
Fundamental Wave Resistive Current Accuracy	±(Readings×5%+5uA) (wired without interphase interference)
Current Harmonic Accuracy	±(Readings×10%+10uA)
Current Channel Input Resistance	≤2Ω
Input Voltage Range	25V~250V	Accuracy: ±(Readings×5%+0.5V)
Voltage Harmonic Accuracy	±(Readings×10%)
Voltage Channel Input Resistance	≥1800kΩ
AC Charging	AC 220V + 10%, 50 Hz ± 1%
Battery Continuous Working Time	More than 8 hours
Battery Charging Time	6 hours
Instrument Precision	1%
Instrument Dimensions	34 cm x 22 cm x 20 cm
Instrument Weight	5 kg (excluding cable box)
Working Environment Temperature	-10°C to 40°C
Relative Humidity	< 90%

Manufacturer Information

About Sansion Power Electric

Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, and aerospace.

Our comprehensive facility includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and sales departments. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.

Main Product Lines

HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester

Quality Certifications

Sansion Power Electric maintains comprehensive quality control with ISO9001 certification and adherence to international IEC and Chinese state standards. Our facility includes dedicated R&D, manufacturing, and testing departments staffed by experienced technical engineers.

Packaging & Delivery

Standard manufacturing time is 3-7 working days from order placement. Located in Wuhan City, China, we facilitate efficient shipping by air or ocean. Custom OEM services are available to meet specific requirements. We welcome partnerships with clients worldwide.

Customer Engagement

Frequently Asked Questions

Q1: Is your company a sales company or a manufacturer?

Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?

We manufacture to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.

Q3: Is the quality guaranteed?

We utilize imported components and conduct three quality inspections before shipment. Export packaging uses non-fumigation wooden boxes for secure transportation.

Q4: What are the after-sales terms?

We provide free consulting service, one-year warranty, and comprehensive support through email communication, video calls, and technical assistance to resolve any after-sales issues promptly.

Q5: What are the cooperative countries or regions?

Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.

Q6: In which fields can your product be applied?

Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Many products incorporate advanced international technologies and rank among the best in China, consistently excelling in national high-voltage testing competitions.
