High Accuracy Zinc Oxide Arrester Tester
Portable Metal-Oxide Arresters Tester for precise electrical performance testing of zinc oxide arresters.
Product Overview

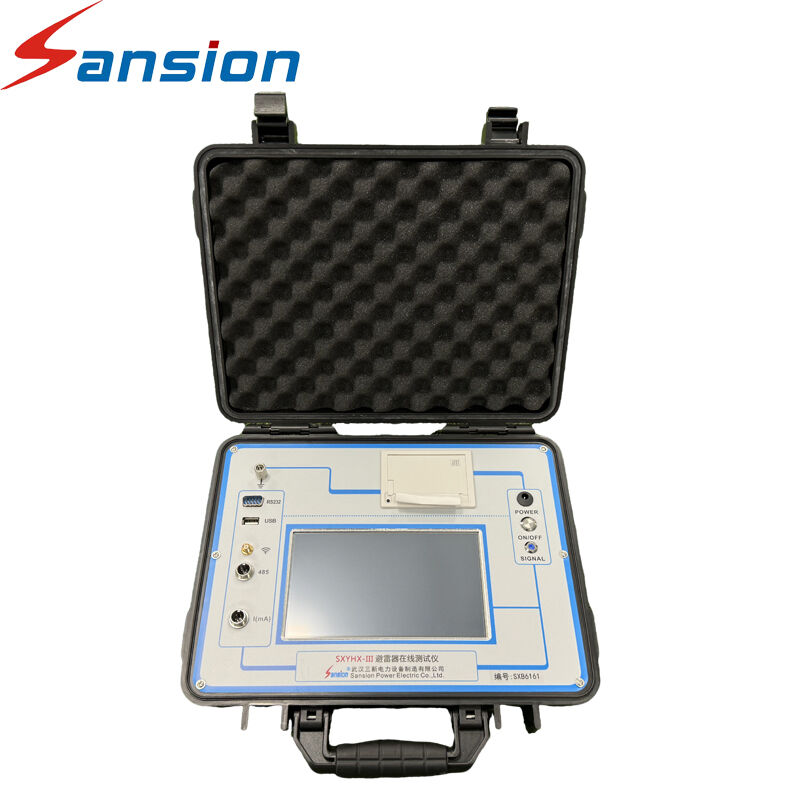

The SXYHX series Zinc Oxide Arrester Tester is specialized equipment designed for comprehensive testing of zinc oxide electric performance. This instrument accurately measures arrester resistive current and monitor counter action parameters during equipment operation, while also providing monitor ammeter verification.
Key Features
- 8-inch color LCD touch screen with high-speed thermal printer
- Identical measurement data for both wired and wireless operation
- Dual sampling modes: Wired for indoor/close proximity use, Wireless for outdoor/distant applications (up to 1000m range)
- Simultaneous three-phase measurement with automatic interphase interference correction
- Built-in high capacity lithium battery for field operation without power supply
Technical Specifications
| Parameter |
Specification |
| Operating Temperature |
-20°C to 50°C |
| Charging Power Supply |
AC 220V±10% |
| PT Reference Voltage Input Range |
0-300V |
| Voltage Channel Input Resistance |
≥150kΩ (with fuse) |
| PT Reference Voltage Accuracy |
±(2% of reading + 0.5V) |
| Current Input Range |
0-10mA |
| Current Fundamental Accuracy |
±(2% of reading + 5μA) |
| Current Harmonic Accuracy |
±(5% of reading + 10μA) |
| Current Channel Input Resistance |
≤1Ω |
| Monitor Action Times |
0-99 times |
| 8/20μS Impulse Current |
≥50Ap |
| Current Meter Calibration Range |
0-10mA |
| Current Meter Calibration Accuracy |
±(2% of reading + 5μA) |
| Battery Working Time |
Main unit: 8 hours, Voltage sampling box: 12 hours |
| Wireless Transmission Distance |
1000 meters and above (clear line of sight) |
| Main Unit Dimensions |
320×270×140mm |
| Hand-held Collection Probe |
180×120×80mm |
| Main Unit Weight |
4kg (without accessories) |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical industry, and aerospace.
With more than 80 employees including 20 technical engineers, we maintain comprehensive facilities including R&D department, manufacturing workshops, high-voltage testing laboratory, and quality control departments. All products conform to ISO9001 quality system certification and meet international IEC and Chinese state standards.
Product Portfolio
Our main product lines include: HV Hipot Test Set Systems, Transformer Test Equipment, HV Switchgear Test Sets, Relay Protection Testers, CT/PT Testers, SF6/Oil Testers, Transmission Line Test Systems, and Insulation/Earth Resistance Testers.
Quality Certifications
Sansion Power Electric maintains ISO9001 quality system certification, ensuring all products strictly conform to international IEC standards and Chinese state standards through rigorous quality control processes.
Packaging & Delivery
Manufacturing typically requires 3-7 working days from order placement. Located in Wuhan City, China, we facilitate efficient shipping via air or ocean transport. Custom OEM services are available to meet specific customer requirements.
Customer Engagement
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, established in 2005 with twenty years of production experience. We maintain reliable production lines, test rooms, and R&D centers.
Q2: Are goods in stock, can they be customized, and what is the delivery time?
A: Products are made to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
A: We use imported components extensively and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes for secure transportation.
Q4: What are the after-sales terms?
A: We provide free consulting service, one-year warranty, and comprehensive after-sales support through email communication, video calls, and technical onsite assistance to resolve any issues promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries worldwide.
Q6: In which fields can your product be applied?
A: Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Our products incorporate advanced international technologies and have consistently excelled in national high-voltage testing competitions.
