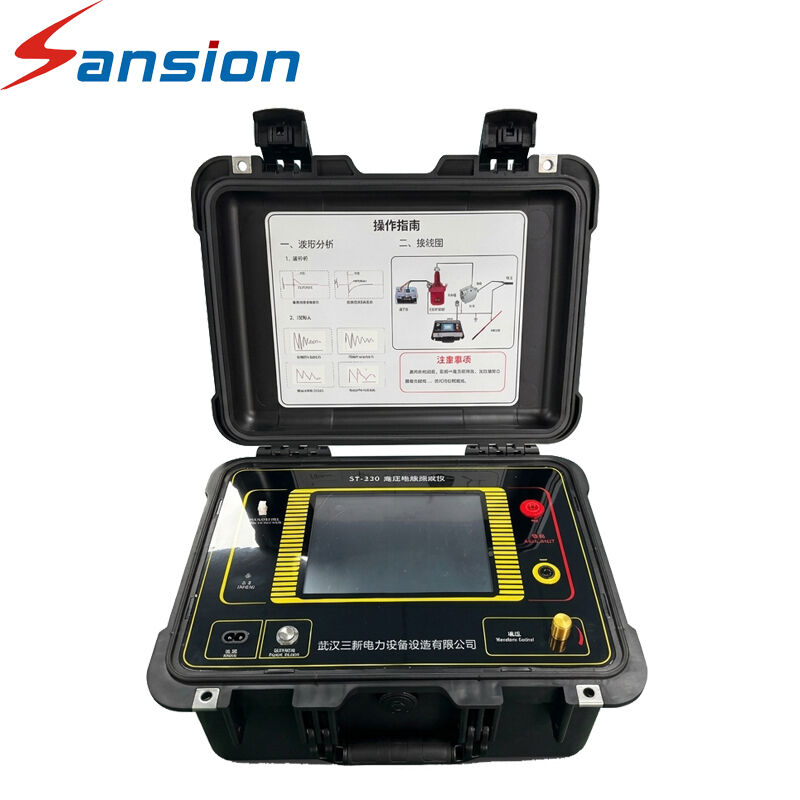

Cable Sheath Fault Locator for Underground Power Cable Maintenance
  • Cable Sheath Fault Locator for Underground Power Cable Maintenance
  • Cable Sheath Fault Locator for Underground Power Cable Maintenance
  • Cable Sheath Fault Locator for Underground Power Cable Maintenance
  • Cable Sheath Fault Locator for Underground Power Cable Maintenance

Cable Sheath Fault Locator for Underground Power Cable Maintenance

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE SGS ISO9001
Model Number: SXDW
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE SGS ISO9001
Model Number:
SXDW
Digital LCD Display:
Yes
Earth Ground Resistance:
0.01Ω–2000Ω
Storage Temperature:
-20°C To 60°C
Weight:
200g To 1kg
Measurement Accuracy:
±1 Meter Or Better
Measurement Method:
2-Pole / 3-Pole / 4-Pole
Power Supply:
Rechargeable Battery
Cable Types:
Coaxial, Ethernet, Fiber Optic, Telephone, HDMI
Highlight:

High Light

Highlight:

underground cable fault locator

,

cable sheath fault locator

,

power cable maintenance tester

Trading Information
Minimum Order Quantity:
1
Packaging Details:
plywood case
Delivery Time:
20 work days
Payment Terms:
T/T,L/C
Product Description
Product Overview

Cable sheath integrity is an important consideration in underground power cable maintenance. Damage to the outer sheath may allow moisture ingress or compromise the cable protection system, depending on the cable design and installation environment.

Sansion Power provides cable sheath fault location equipment designed to support the testing and investigation of suitable sheath defects.

The correct testing method depends on cable construction, sheath design, grounding arrangement, and the applicable testing procedure.

Testing Functions
  • Support for applicable cable sheath integrity testing.
  • Detection of suitable sheath insulation defects.
  • Sheath fault distance estimation or pinpointing, depending on the selected equipment.
  • Assistance with locating suspected sheath damage.
  • Optional integration with a broader cable fault location system.
Applications
  • Underground power cable maintenance.
  • Cable installation and acceptance checks.
  • Utility cable inspection.
  • Industrial cable network maintenance.
  • Investigation of suspected sheath damage.
  • Cable repair and diagnostic services.
Addressing Common Site Challenges
  • Uncertain sheath damage location: Suitable testing equipment can help narrow down the suspected damaged section.
  • Difficult site conditions: Cable route, soil conditions, grounding arrangements, and access restrictions may affect the testing procedure.
  • Unclear equipment compatibility: Not every cable fault tester includes sheath fault location functionality. Verify the instrument's intended application before ordering.
Frequently Asked Questions
Q1: What is a cable sheath fault?

It is a defect affecting the cable's outer sheath or sheath insulation system. Its significance depends on the cable construction and operating environment.

Q2: Is sheath fault location the same as conductor fault location?

No. These tasks address different parts of the cable and may require different test connections and methods.

Q3: Can a standard TDR locate every sheath fault?

Not necessarily. A dedicated sheath testing or locating method may be required, depending on the defect and cable construction.

Q4: What details are needed for equipment selection?

Provide the cable type, sheath construction, approximate cable length, grounding arrangement, and suspected defect characteristics.

Q5: Can sheath testing equipment be part of a complete cable fault location system?

Yes, where the selected system supports the required sheath testing functions and compatible accessories.

Contact Sansion Power

Request technical documentation and product recommendations for cable sheath testing and fault location applications.

Cable sheath fault locator equipment for underground power cable maintenance testing
