Automatic Temperature Rise Test System for Circuit Breakers, Switchgear and Electrical Equipment

Product Introduction

Ensure reliable thermal performance of electrical equipment with our Intelligent Temperature Rise Test Equipment. Designed for industrial laboratories, electrical manufacturers, and quality inspection facilities, this system combines controlled high-current injection, real-time electrical measurement, and multi-channel temperature monitoring in one integrated testing solution.

During temperature rise testing, electrical components are exposed to specified current loads while temperature changes are monitored at multiple measurement points. The system helps engineers assess thermal behavior, identify abnormal heating, and evaluate the performance of electrical connections and protective components under defined test conditions.

Available Configurations

• Integrated Type

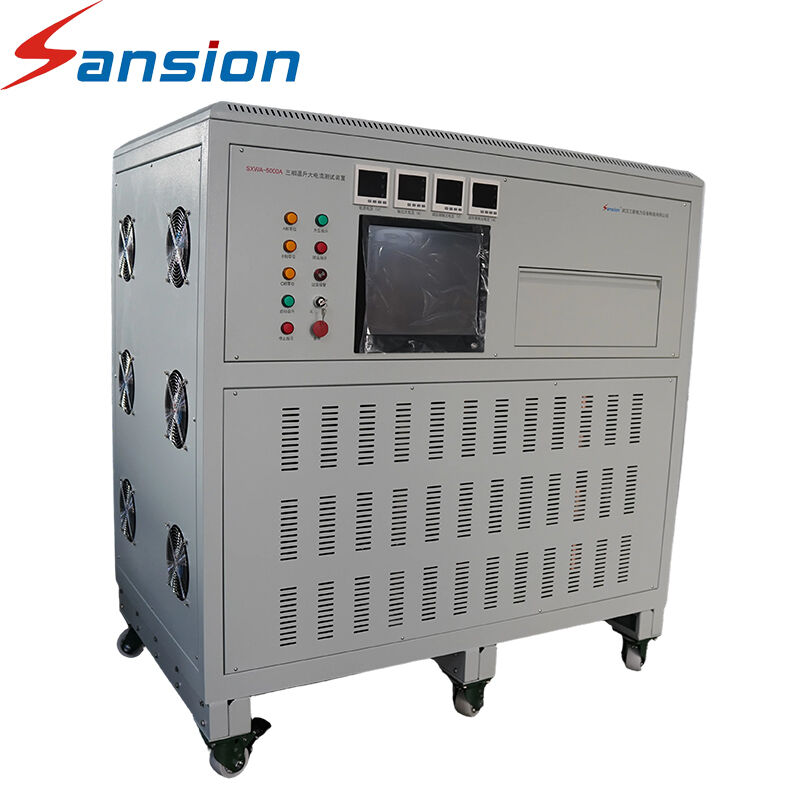

  The main power unit, control interface, and associated measurement functions are integrated into a single cabinet. This configuration is suitable for applications requiring a compact installation and centralized operation.

• Split Type
  The power unit and control console are arranged separately. This configuration provides greater flexibility for equipment placement and can be adapted to specific laboratory or industrial testing environments.

Application

• Circuit Breaker Thermal Testing
  Monitor temperature changes at terminals and conductive connections under specified current conditions to support thermal performance evaluation.

• Switchgear and Electrical Panel Testing
  Assess temperature rise at busbar joints, cable connections, and other current-carrying components in electrical assemblies.

• Busbar and Cable Testing
  Apply the required current load and monitor temperature changes to evaluate thermal performance under defined test conditions.

• Contactor and Relay Testing
  Support thermal evaluation of contactors, thermal relays, and related electrical control components.

• Electrical Manufacturing Quality Control
  Integrate temperature rise testing into product inspection, engineering verification, and manufacturing quality assurance workflows.

• Research and Testing Laboratories
  Provide configurable current output and multi-point temperature acquisition for product development and laboratory testing.

FAQ

1. What is temperature rise test equipment used for?
   It is used to evaluate temperature changes in electrical equipment and components when subjected to specified current loads. Typical applications include circuit breakers, switchgear, busbars, cables, contactors, and electrical connections.

2. Can the equipment monitor several temperature points simultaneously?
   Yes. Available configurations include 12, 24, 48, or 64 temperature measurement channels, depending on the selected model.
