Product Description

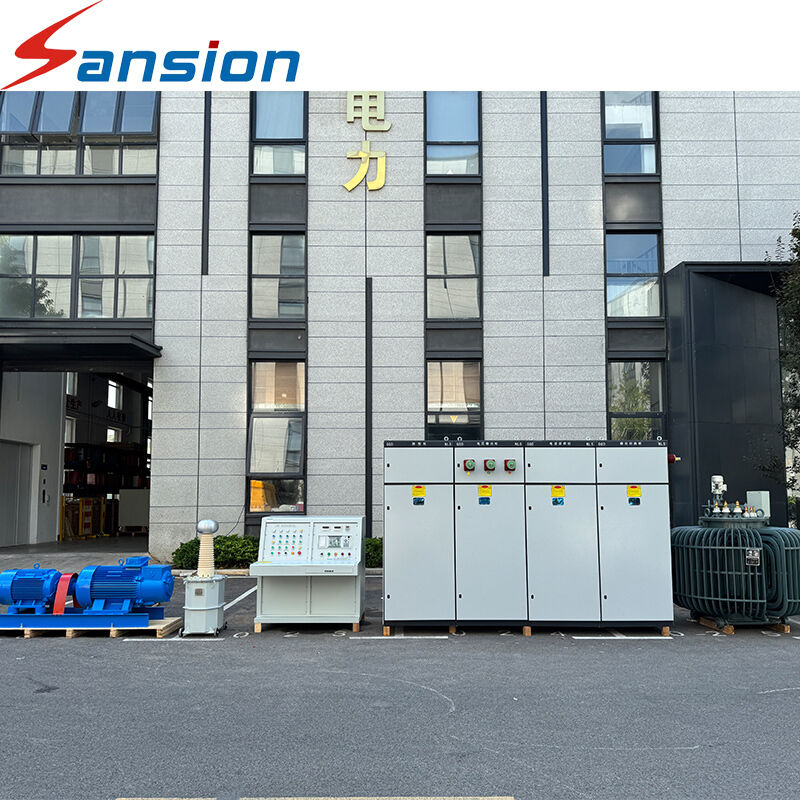

The SXBZ Series Transformer Test Bench is a professional all-in-one high voltage testing equipment, specially designed for full-range factory inspection and routine maintenance testing of various power transformers.
It is widely applicable to power grid supply & distribution stations, transformer manufacturing factories, transformer maintenance service centers and related electrical testing labs. The whole unit supports personalized customization according to customers’ actual testing demands, and can be configured as bench type or microcomputer integrated type to adapt to different test sites.
This test bench integrates all core transformer testing functions, covering no-load & load loss test, winding resistance, turn ratio, impedance, power frequency withstand voltage, induced overvoltage, partial discharge, temperature rise, impulse voltage, insulation test and transformer oil analysis. Equipped with PLC control system and high-precision A/D converter, it realizes automatic data acquisition, calculation, storage, printing and test report generation, greatly improving testing efficiency and test data accuracy.
Complete multi-layer safety protection mechanisms such as overvoltage, overcurrent, overload, misoperation and wrong wiring protection are built in to guarantee safe operation for operators.
Product Features
- Dual operation modes with interlock protection: push-button manual control and computer automatic control; only one mode can run at the same time to avoid misoperation.
- Full English operation interface, convenient for overseas users to operate and debug.
- Large LCD display screen, real-time synchronous display of 18 testing parameters including three-phase voltage, current and other core indicators.
- Adopts industrial high-speed processor + PLC controller, matched with high-precision A/D converter; all test data is automatically calculated, stored, printed and exported into customized test reports.
- Flexible equipment structure customization: optional desktop bench type or microcomputer integrated type to fit different laboratory space.
- Automatically switch PT & CT measuring ranges with adjustable voltage and current ratio; direct display of final test values without manual conversion.
- Built-in ACCESS database, which can store test parameters, real-time data, ambient temperature, test date and other information, support data query, browsing and analysis.
- Supports accurate measurement under low power factor conditions (power factor range: 0.01–1.00).
- Comprehensive multi-protection system: overload alarm, wrong wiring protection, misoperation protection, overvoltage & overcurrent protection.
- Complete automatic control modules: external induction voltage regulator, single-phase voltage regulator, voltage/current transformer switching control, with real-time voltage & current monitoring and overcurrent interlock protection.
Main Test Items
- Transformer No-load Loss & No-load Current Test (auto rated voltage adjustment, auto no-load current percentage calculation)
- Transformer Load Loss Test (auto rated current adjustment & temperature correction)
- Transformer Turn Ratio Test
- DC Winding Resistance Test
- Transformer Impedance & Impedance Voltage Test (auto temperature correction)
- Power Frequency Withstand Voltage (Hipot) Test
- Double-Frequency Induced Withstand Voltage Test
- Transformer Temperature Rise Test
- Partial Discharge Test
- Insulation Resistance, Absorption Ratio & Polarization Index Test
- Lightning Impulse Voltage Test
- On-load Tap Changer Test
- Transformer Oil Test: Oil Chromatography, Breakdown Voltage, Oil Dew Point Test
Technical Specifications
- Testable Transformer Capacity: 50kVA ~ 1000MVA
- Applicable Voltage Class: 6kV, 10kV, 35kV, 110kV, 220kV, 330kV, 500kV, 750kV, 1000kV
- DC Test Accuracy: 0.2%
- Standard Test Current: 2A / 5A / 10A / 20A
- Turn Ratio Test Accuracy: 0.2%
- No-load / Load Current & Short-circuit Resistance Accuracy: 0.2%
- No-load & Load Loss Test Accuracy: 0.2%±0.05D
- Measurable Power Factor Range: 0.01–1.00
- AC Withstand Voltage Output: 0–1000kV
- Induced Withstand Voltage Output: 800V ~ 20kV ~ 80kV
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A:We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
