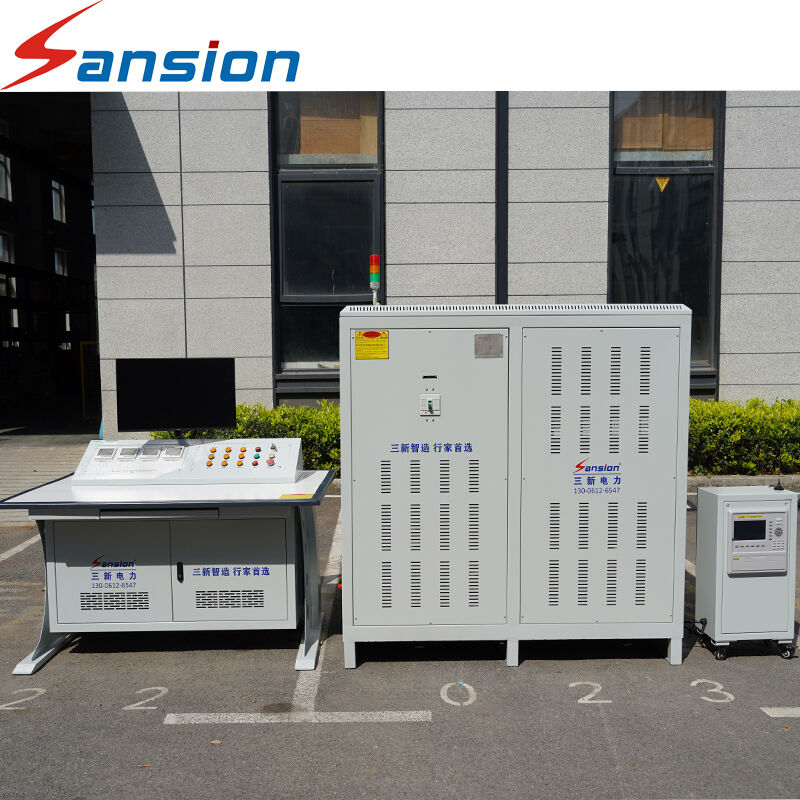

7000A Primary Current Injection Test Set Temperature Rise Test System

Name: 7000A Primary Current Injection Test Set Temperature Rise Test System
Brand: Sansion Power Electric Co., Ltd.
SKU: SXWA
Price: 1000 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE SGS ISO9001
Model Number:	SXWA

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE SGS ISO9001

Model Number:

SXWA

Application And Test Object1:

Circuit Breaker Testing

Application And Test Object2:

Protection Relay Testing

Application And Test Object3:

Current Transformer (CT) Testing

Application And Test Object4:

Fuse Testing

Application And Test Object5:

Busbar Temperature Rise Test

Trading Information

Minimum Order Quantity:

Price:

1000

Packaging Details:

plywood case

Delivery Time:

5-8 work days

Payment Terms:

T/T,L/C

Product Description

General Information

SXWA Series High Current Temperature Rise Test System is suitable for current load test and temperature rise test on various circuit breakers, switch gears, CT/PT and others electric equipments. SXWA Primary Current Injection Test Set is widely used in power division and industry mining enterprises.

Features

Could be designed to separate or compact structure according to the volume and weight.
High stability of current rising.
Wide range of load changing.
Auto transformer is adjustable.
Reliable and easy to operate.

Specifications

Input voltage: 220V or 380V or at customized.
Current output adjustable smoothly. Precision: 1.0
To display primary current, secondary current test value, easy for CT/PT turns ratio test.
The current action time could be measured and locked.(option)
For temperature rise (30mins~24 hours), to be customized according to long working duration.(option)
Three phase current injection.(option)
Both AC/DC dual purpose current injection.(option)

Input Voltage		AC380 Three-phase four-wire AC380
Rated Frequency		50 Hz
Total System Power		189kW
Total System Current		287A
System Power Factor		Cosφ=0.8
Oil-immersed Induction Regulator		Dry Uplift
Rated capacitance	63kVA	Rated capacitance	63kVA
Output Voltage	0-430V	Output Voltage	10V
Output Current	0-166A	Output Current	0-6300A
Waveform Distortion	≤3%	Rated Input Voltage	380V
Starting Voltage	≤1%	Load Loss	<4%
Short-circuit Resistance	≤7%	Rated Input Current	166A
