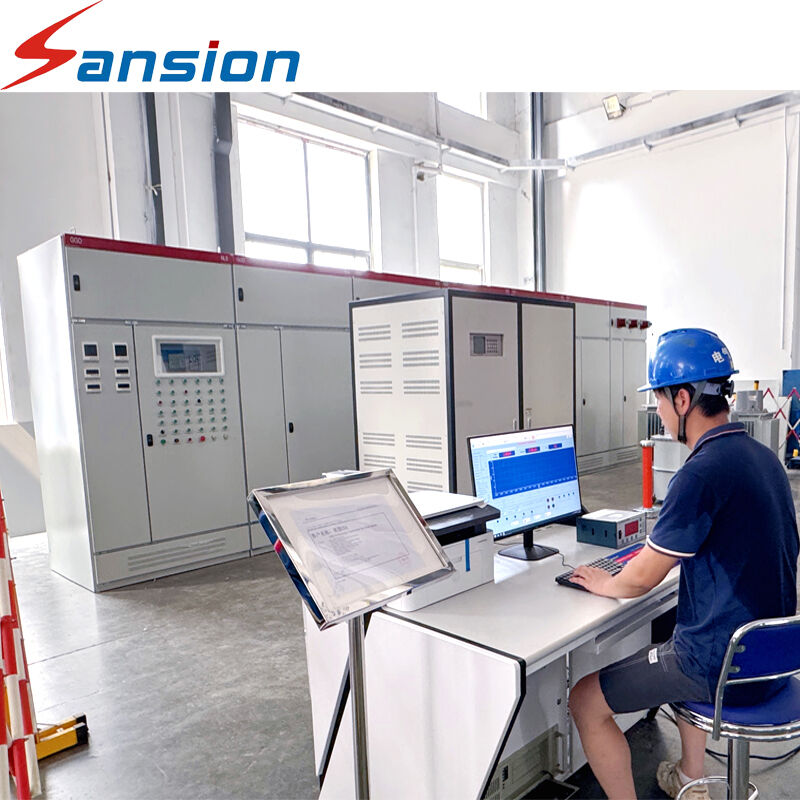

Automatic Multi Functional Power Transformer Comprehensive Test Bench
The SXBZ-III series Power Transformer Comprehensive Test Bench is engineered for comprehensive factory acceptance and maintenance testing of various transformers. This advanced system finds extensive application across power supply and distribution networks, transformer manufacturing facilities, maintenance centers, and industrial enterprises.
System Features
- Large backlit LCD screen with clear operation and display separation for intuitive use
- Capable of performing DC resistance, ratio/vector group, no-load loss, on-load loss, AC withstand voltage, and induced withstand voltage tests for power transformers ranging from 50 kVA to 100,000 kVA
- Voltage and current readings are directly displayed digitally or via pointer meters. Test results for losses, ratio, and DC resistance can be printed or downloaded
- Overcurrent protection during withstand voltage tests, with audible and visual alarms, and configurable timer functions
Product Parameters
| Testing Capabilities |
Measure and control no-load test, on-load test, power frequency test, double frequency test of 10kV, 35kV, 110kV, 220kV transformer |
| Measurement & Monitoring |
Input three phase voltage monitor meter (digital display), input current monitor meter (digital display), output voltage monitor meter (digital display), power frequency test voltage measuring meter (digital display), power frequency test current measuring meter (digital display), double frequency test voltage measuring meter (digital display), double frequency test current measuring meter (digital display) |
| Operation Controls |
Switch function of test items, control of input and output voltage, control of load and no load test current shift, control of voltage regulator boosting and reduction |
| Protection Systems |
Load and no load test overcurrent protection, power frequency test overcurrent protection, double frequency test overcurrent protection |
| Power Supply |
Three phase four wires |
| Current Transformer |
Use 0.05 level two same model current transformers which are multi-gear |
| External Components |
High voltage transformer and intermediate frequency brushless generator external |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in research, development, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse sectors including power electric, railroad, energy conservation, environmental protection, water conservancy, petrochemical industry, and aerospace.
Our integrated operations include R&D department, instrument manufacturing workshop, high-voltage workshop, sample exhibition room, HV testing laboratory, quality control department, and comprehensive administrative offices. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and strict compliance with international IEC and Chinese state standards.
Core Product Portfolio
HV Hipot Test Set System
Transformer Test Equipment
HV Switchgear Test Set
Relay Protection Tester
CT/PT Tester
SF6/Oil Tester
Transmission Line Test System
Insulation Resistance Tester
Earth Resistance Tester
Quality Certifications
Our commitment to quality is demonstrated through ISO9001 certification and strict adherence to international IEC standards. Each product undergoes rigorous testing and validation processes to ensure reliability and performance.
Global Operations
Located in Wuhan City, China's provincial capital, we facilitate efficient shipping via air or ocean transport. Standard manufacturing lead times range from 3-7 working days, with OEM services available for customized requirements. We welcome partnerships with clients worldwide.
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. operates as an integrated industrial and trading enterprise. We have our own factory, overseeing production and sales independently. Established in 2005, we possess over twenty years of manufacturing expertise, supported by reliable production lines, dedicated testing facilities, and an in-house R&D center.
Are goods kept in stock? Can they be customized, and what is the typical delivery time?
Products are generally made to order, allowing us to customize according to specific customer requirements using the latest technology. Under normal circumstances, delivery can be completed within 10 working days.
How is quality assured?
To ensure high quality, we extensively use imported components. Each product undergoes three rounds of inspection before shipment. Export packaging is standardized using fumigation-free wooden crates for secure transportation.
What after-sales support do you provide?
We offer complimentary technical consultation and a one-year warranty. Support is provided through multiple channels including email, video calls, and on-site technical assistance when necessary, ensuring timely resolution of any after-sales issues.
Which countries or regions do you currently supply?
Our products have been successfully exported to numerous markets, including the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
