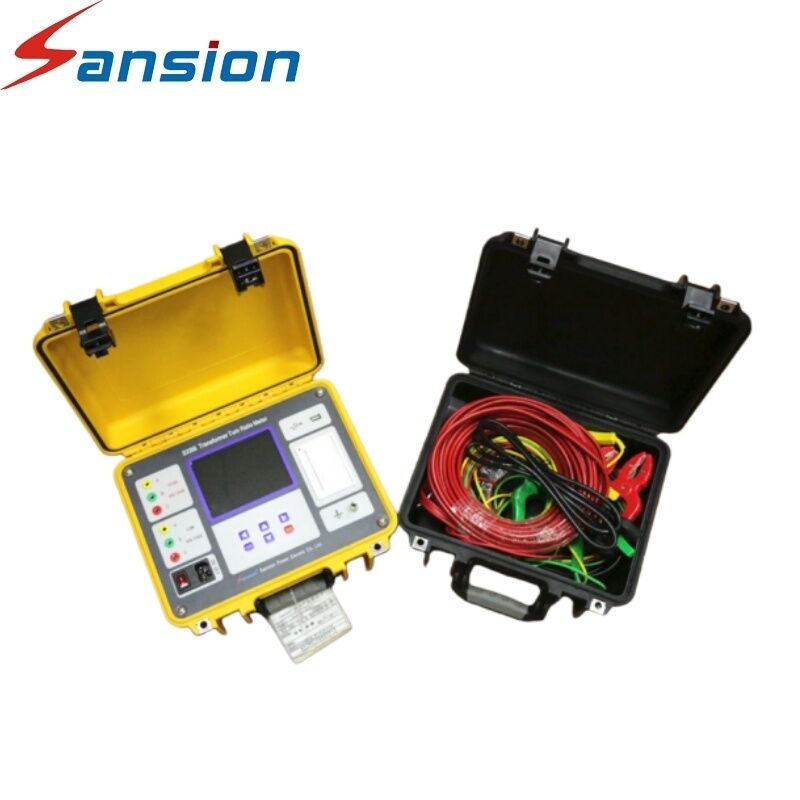

Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester
  • Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester
  • Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester
  • Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester

Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE/CNAS/ISO9001
Model NO.:
SXBB
Max Diameter Of Workpiece:
<500mm
Mass Scope Of Workpiece:
<900kg
Type:
Transformer Turn Ratios Tester
Maxcapacity:
<1000KN
Accuracy Grade:
0.5
Load Way:
Electronic Load
Loading Method:
Dynamic Load
Display:
Digital
Control:
Manual Control
Weight:
0-100Kg
Power Source:
AC220V
Oil Cylinder Position:
Under
Test Standard1:
Transformer Testing
Test Standard2:
Preventive Maintenance
Test Standard3:
Condition Assessment
Test Standard4:
Power Transformer
Test Standard5:
Distribution Transformer
Test Standard6:
Instrument Transformer(CT/PT)
Test Standard7:
Current Transformer
Test Standard8:
Potential Transformer / Voltage Transformer
Test Standard9:
IEEE C57.12.90
Test Standard10:
IEC 60076-1
Transport Package:
Plywood Case
Specification:
ISO9001 SGS
Trademark:
Sansion
Origin:
China
HS Code:
9030332000
Production Capacity:
200 Units/Month
Highlight:

High Light

Highlight:

universal TTR tester for transformers

,

Three Phase Transformer Turn Ratios Tester

,

Single phase Transformer Turn Ratios Tester

Trading Information
Minimum Order Quantity:
1 Set
Price:
950
Packaging Details:
Plywood Case
Payment Terms:
L/C T/T
Supply Ability:
100 Units/Month
Product Description
Universal TTR Tester for Single and Three-Phase Transformer Ratio Testing
Factory wholesale price universal TTR tester designed for comprehensive transformer turns ratio testing of single and three-phase power, distribution, and instrument transformers.
Product Overview
Transformer turns ratio testing is essential for verifying that transformers maintain the correct ratio between primary and secondary windings according to rated voltage specifications. The SXTTR is a single-phase automated test set specifically engineered for turns ratio, phase shift, and excitation current measurements.
Key Features
  • Automatic transformer connection group measurement
  • Automatic group conversion and phase sequence switching
  • Automatic measuring range selection and calibration
  • Automatic calculation of relative error after inputting standard turns ratio
  • Automatic voltage cutoff after test completion
  • Automatic data saving with historical data browsing capability
  • Simplified testing requiring only one turns ratio input for load transformers
Technical Specifications
Power Supply AC 220V±10%, 50Hz±1
Ratio Range 1-10000
Display Large LCD screen
Accuracy 1-999.99: 0.2% | 1000-9999.9: 0.5%
Test Voltage H.V: AC 190V (Selectable) | L.V: AC 0.19V~190V (varies with ratio)
Operating Conditions Ambient temperature: -10~40ºC | Ambient humidity: <85% RH
Applications
  • Factory Acceptance Testing (FAT) for new transformers
  • Preventive maintenance to detect winding degradation
  • Commissioning of substation equipment (IEC/IEEE compliance)
  • Troubleshooting faults including inter-turn shorts or core damage
Standards Compliance
Meets IEC 60076-1, IEEE C57.12.90, and ANSI C57.12.00 standards
Company Profile
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 0
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical, and aerospace.
Our facility includes R&D departments, instrument manufacturing workshops, high-voltage workshops, sample exhibition rooms, HV testing laboratories, quality control departments, and comprehensive sales and information offices. With over 80 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products strictly conform to international IEC and Chinese state standards.
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 1
Certifications
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 2 Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 3
Packing & Delivery
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 4
Customer Visits
Single And Three Phase Transformer Turn Ratios Tester Universal Automatic TTR Tester 5
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with our own factory, operating as a self-produced and self-sold manufacturer. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
We manufacture products to order according to customer specifications using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Q3: Is the quality guaranteed?
We ensure quality by using imported components extensively. All products undergo three quality inspections before shipment and are packed in export-standard non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We provide free consulting services, one-year warranty, and comprehensive after-sales support through email communication, video calls, and on-site technical assistance to resolve any issues promptly.
Q5: What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and many other countries and regions.
