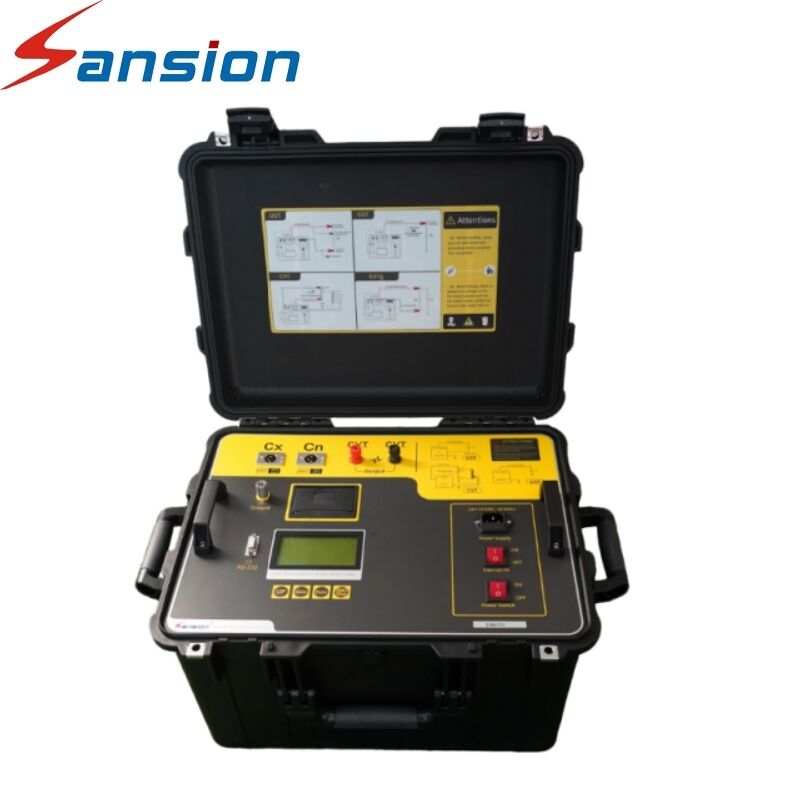

Transformer Efficiency Analyzer Automated Load/No-Load Loss and Capacity Tester
This professional precision instrument is designed for measuring the dielectric loss tangent and capacitance of power transformers, bushings, current transformers, and other high-voltage electrical equipment. It integrates advanced digital signal processing technology and anti-interference circuits, providing accurate, fast, and stable on-site detection with reliable data support for evaluating transformer insulation performance and preventing equipment failure.
Key Features
- High-precision measurement with advanced AD sampling and digital filtering technology
- Integrated design with light weight and compact structure for easy portability
- Automatic calculation and data storage with multiple test data capacity
- Wide measurement range adaptable to various voltage levels and insulation equipment
- User-friendly touch screen operation with clear interface and simple steps
Technical Specifications
| Dielectric Loss Tangent (tanδ) Range |
0～±99.99% |
| Capacitance Measurement Range |
0.01nF～1000nF |
| Measurement Accuracy |
tanδ: ±(0.001+0.0001×tanδ), capacitance: ±(0.5%+1pF) |
| Test Voltage |
0.5kV～10kV (stepless adjustable) |
| Power Supply |
AC220V±10%, 50Hz±1Hz |
| Operating Temperature |
-20℃～+50℃ |
| Relative Humidity |
≤85% (no condensation) |
| Instrument Weight |
≤8kg |
| Compliance Standard |
IEC270 |
About Sansion Power Electric
Established in 2005, Sansion Power Electric brings over 20 years of expertise in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace, and other sectors.
Our facility includes R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, and employs over 80 staff including 20 technical engineers. We maintain ISO9001 quality system certification and all products strictly conform to international IEC and Chinese state standards.
Frequently Asked Questions
Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Are goods in stock? Can they be customized? What is the delivery time?
We manufacture to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days under normal circumstances.
Is the quality guaranteed?
We use imported components extensively and conduct three quality inspections before shipment. Export products are uniformly packed in non-fumigation wooden boxes.
What are the after-sales terms?
We offer free consulting service, one year warranty, and utilize various methods including email communication, video calls, and on-site technical support to resolve any after-sales issues promptly.
What are the cooperative countries or regions?
Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
