Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester

Name: Automatic Electrical Insulating Tools Testing Machine Dielectric Boots Gloves Insulation Withstand Tester
Brand: Sansion Power Electric Co., Ltd.
Price: 645 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/CNAS/ISO9001

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE/CNAS/ISO9001

Model NO.:

SXNYZ

Max Diameter Of Workpiece:

900mm

Mass Scope Of Workpiece:

<900kg

Type:

Safety Tool Testing Device

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

LCD Display

Control:

Computer Control

Weight:

0-100Kg

Power Source:

AC 110V/220V At Customized

Oil Cylinder Position:

Voltage Measuring Error:

<±(0.2%U+0.02%Umax) U Is Reading Value, Umax Is Up

Current Measuring Error:

<±(0.2%I+0.02%Imax) I Is Reading Value, Imax Is Up

Leakage Current Measuring Error:

±(0.5%I+2digits), I Is Reading Value

Test Subject 1:

Hot Stick / Live Line Tool Test

Test Subject 2:

Insulating Glove & Sleeve Test

Test Subject 3:

Dielectric Overshoe & Mat Test

Test Subject 4:

Voltage Detector / Phaser Test

Test Subject 5:

Insulating Blanket Test

Transport Package:

Plywood Case

Specification:

Customized

Trademark:

Sansion

Origin:

China

HS Code:

9030339000

Production Capacity:

100 Units/Month

Highlight:

High Light

Highlight:

Automatic Electrical Insulating Tools Testing Machine

Gloves Insulation Withstand Tester

Boots Insulation Withstand Tester

Trading Information

Minimum Order Quantity:

1 Set

Price:

645

Packaging Details:

Plywood Case

Payment Terms:

L/C T/T

Supply Ability:

100 Units/Month

Product Description

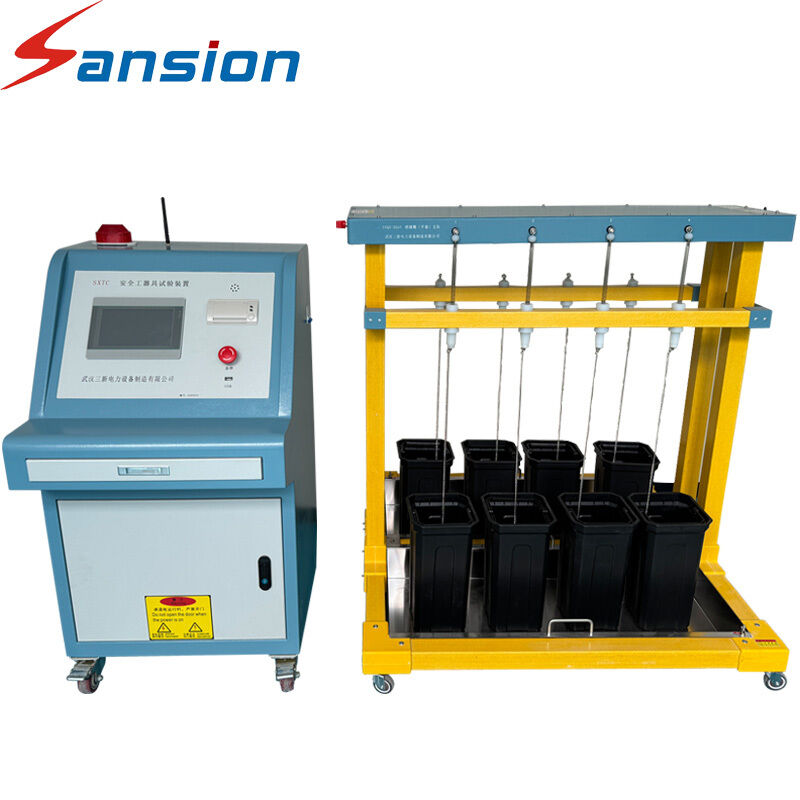

Automatic Electrical Insulating Tools Testing Machine

Professional dielectric testing equipment for boots, gloves, and electrical insulating tools with comprehensive withstand voltage testing capabilities.

Product Overview

The SXNYZ Series automatic testing machine is designed for comprehensive dielectric testing of electrical insulating equipment including protective clothing, rubber products, transformers, switchgear, cables, capacitors, and various electrical tools and accessories.

Key Features

8-way measurement output: high voltage, low voltage current and 6-way leakage current monitoring
Real-time display of HV voltage, LV current and leakage currents for precise fault detection
Comprehensive protection functions: over-voltage/current protection with adjustable limitations
Anti-interference design with high stability and audible/visual alarm system
Full digital calibration system for enhanced safety and reliability
Emergency stop and exit functions for operator safety

Technical Specifications

Rated Capacity	3kVA/5kVA or customized
Input Voltage	AC220V/380V ±10%, 50Hz ±1
Output Voltage	0-100kV (customizable)
Rating	100% rated - 1 minute, 50% - continuous operation
HV Source	Testing Transformer
Output Control	Manual / Electric driving / Auto control
Timing Range	0-999 seconds

Manufacturer Profile

Sansion Power Electric Co., Ltd., established in 2005, brings over 15 years of expertise in research, development, and manufacturing of power electrical testing products. Our solutions serve diverse industries including power electric, railroad, energy conservation, water conservancy, petrochemical, and aerospace sectors.

Product Portfolio

HV Hipot Test Set Systems
Transformer Test Equipment
HV Switchgear Test Sets
Relay Protection Testers
CT/PT Testers
SF6/Oil Testers
Transmission Line Test Systems
Insulation Resistance Testers
Earth Resistance Testers

Global Operations

Located in Wuhan City, China, Sansion Power offers efficient 3-7 day manufacturing cycles with global shipping capabilities via air or ocean freight. We provide comprehensive OEM services and welcome international partnerships.

Quality Certifications

Our comprehensive facility includes R&D, manufacturing workshops, HV testing laboratories, and quality control departments. With over 60 employees including 20 technical engineers, we maintain ISO9001 quality system certification and ensure all products conform to international IEC and Chinese state standards.
