Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge
Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge
  • Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge

Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge

Product Details:
Place of Origin: China
Brand Name: Sansion
Certification: CE/CNAS/ISO9001
Detail Information
Place of Origin:
China
Brand Name:
Sansion
Certification:
CE/CNAS/ISO9001
Model NO.:
SXDC-Z
Type:
Batteries Monomer Tester
Test Region:
Current
Application:
Lead-acid Battery
Customized:
Non-Customized
Package Gross Weight:
200.000kg
Input Voltage:
220V
Application 1:
IEC / IEEE Standards For Temperature Rise Test
Application 2:
Switchgear Temperature Rise Test
Application 3:
Busbar / Cable Joint Testin
Application 4:
Transformer Winding Temperature Test
Application 5:
Circuit Breaker Thermal Performance Test
Trademark:
Sansion
Origin:
China
HS Code:
9030849000
Production Capacity:
100 Units/Month
Highlight:

High Light

Highlight:

Portable Design Battery Test Equipment

,

Marine Battery Diagnostic Gauge

Trading Information
Minimum Order Quantity:
1 Set
Price:
US $3,000-5,000 / S
Packaging Details:
Plywood Case
Payment Terms:
L/C T/T
Supply Ability:
100 Units/Month
Product Description

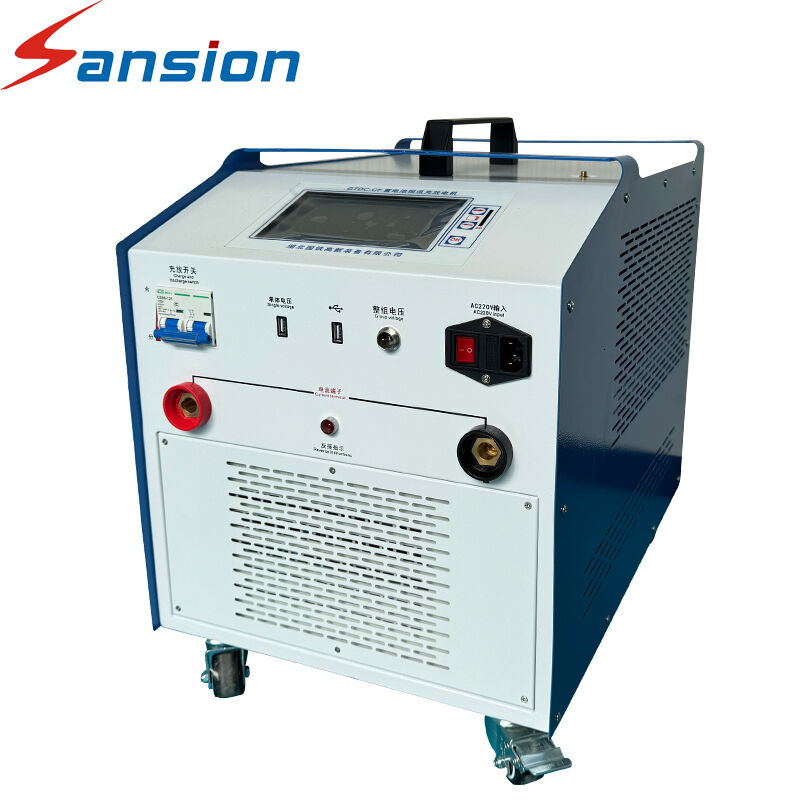

SXDC-Z DC Power Supply Characteristic Tester
This multi-channel battery pack tester is an integrated detection device designed for batch testing of series battery packs. It supports simultaneous testing of 1-24 single cells in battery packs, automatically collecting and sorting parameters such as voltage, internal resistance, and consistency of each cell. Adopting industrial-grade hardware and multi-layer electromagnetic shielding design, it can operate stably in harsh electromagnetic environments of power plants, substations, and new energy factories. The product complies with IEC and GB battery testing standards, providing accurate data support for battery pack production, maintenance, and fault diagnosis, while significantly improving testing efficiency.
Key Features
  • Batch Testing Capability: 1-24 optional test channels, supporting simultaneous testing of single cells in battery packs, reducing testing time by 80% compared to single-channel devices.
  • Strong Anti-Interference: Equipped with surge protection and electromagnetic shielding circuit, effectively resisting on-site interference from power equipment, ensuring stable testing.
  • Dual Power Supply Mode: Supports AC 110/220V dual voltage input and built-in 8000mAh lithium battery, adapting to both laboratory and on-site mobile testing.
  • Cell Consistency Analysis: Automatically analyzes the consistency of each cell in the battery pack, marking abnormal cells, and helping to avoid battery pack failure caused by individual faulty cells.
  • Standard Report Generation: Automatically generates professional test reports that meet industry standards, supporting one-key printing and PDF export for project acceptance.
Technical Specifications
Parameter Item Specification
Test Battery Type 12V/24V lead-acid battery packs, lithium battery packs (1.2V-30V)
Test Channels 1-24 channels (adjustable), batch testing
Measurement Accuracy Voltage: ±0.1% FS; Internal resistance: ±0.8% FS
Working Power AC 110/220V±10% 50/60Hz; DC 12V/8000mAh
Host Size 280*200*100mm
Protection Level IP65 (waterproof and dustproof)
About Sansion Power Electric
Sansion Power Electric Co., Ltd was established in 2005, with over 10 years of experience in R&D, manufacturing and marketing of power electrical testing products. Our products are widely used in power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and other critical industries.
Main Product Categories
  • HV Hipot Test Set System
  • Transformer Test Equipment
  • HV Switchgear Test Set
  • Relay Protection Tester
  • CT/PT Tester
  • SF6/Oil Tester
  • Transmission Line Test System
  • Insulation Resistance Tester
  • Earth Resistance Tester
Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 0 Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 1 Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 2 Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 3 Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 4
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.
Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
Products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
Q6: In which fields can your product be applied?
Our services span key industries including Power, Railway, Energy Conservation & Environmental Protection, Water Conservancy, Petrochemicals, and Aerospace. Many of our products incorporate advanced international technologies and rank among the best in China. They have consistently excelled in national high-voltage testing competitions and earned widespread acclaim from our partners.
Portable Design Battery Test Equipment Handheld Marine Battery Diagnostic Gauge 5
