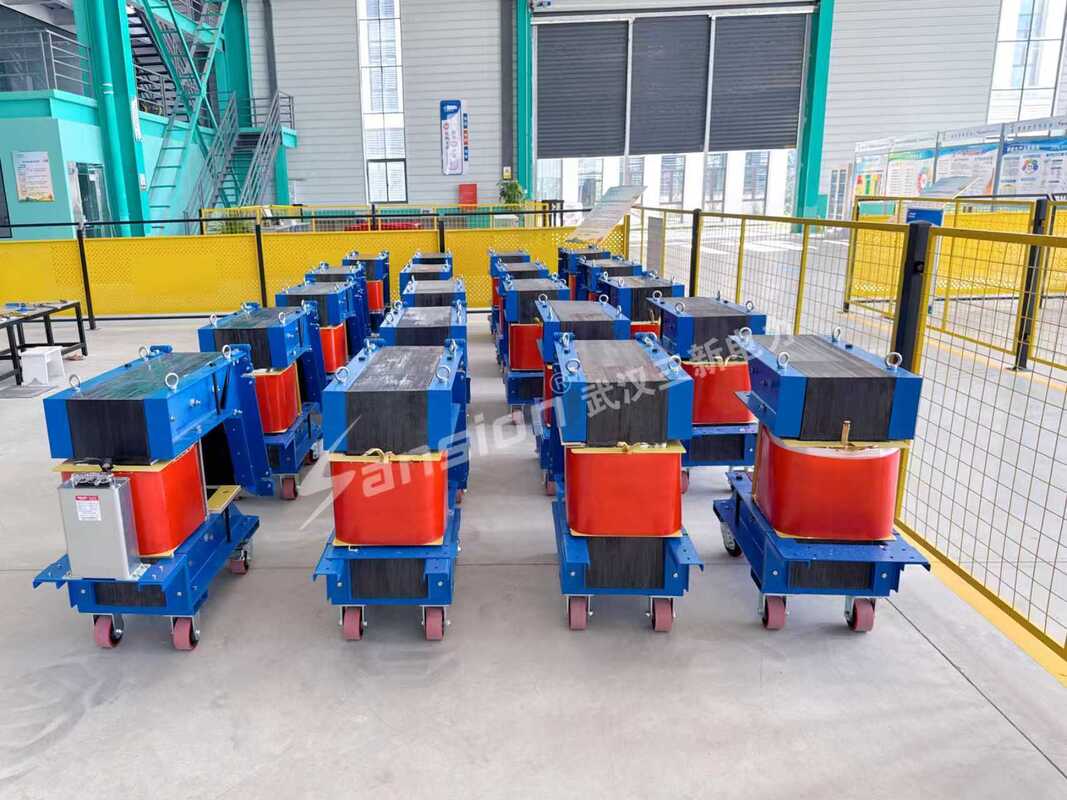

Precision HV Cable Thermal Cycling Test System
Complete HV Cable Thermal Cycling Test System compliant with IPCEA, AEIC, VDE, and EDF standards.
Testing Applications
- Type testing of cable samples in accordance with international standards including IEC, IEEE, IPCEA, AEIC, VDE, and EDF
- Cable samples and accessories subjected to inductive heating
- Heated cables simultaneously stressed with DC high voltage, AC high voltage, and impulse voltage
- Testing achieved through system options or external equipment integration
System Sizing Considerations
The actual cable rating and design depend on multiple factors including:
- Conductor type and cross-sectional area
- Insulation type and thickness
- Length of cable to be tested
- Ambient and specified test temperatures
- Allowable duration to achieve test temperature
System Capabilities
- Available in both indoor and outdoor configurations
- Operation managed through automated controls
- Choice of SCR (Electronic Regulator) or Variable Autotransformer control systems
- Precise temperature regulating controls integrated
- Design supports expanded testing capability for multiple units
- Capacitive compensation to lower input power and regulator size
- Standard models available with ratings up to 6000 Amps
Technical Specifications
| MODEL |
SXCT15-2000 |
SXCT30-3000 |
SXCT25-4000 |
SXCT20-5000 |
SXCT17-6000 |
| INPUT KVA |
30/36 |
90/108 |
100/120 |
100/120 |
100/12 |
| Frequency |
50 or 60 Hz (one must be specified) |
| OUTPUT Voltage 60 Hz |
0-18 V |
0-36 V |
0-30 V |
0-24 V |
0-20 V |
| Voltage 50 Hz |
0-15 V |
0-30 V |
0-25 V |
0-20 V |
0-17 |
| Current |
0-2000 A |
0-3000 A |
0-4000 A |
0-5000 A |
0-6000 |
| DUTY CYCLE |
continuous |
Digital Metering
| Output Currentmeter |
4 digit digital meter displays TRMS value of output current |
| Range |
0-2000 |
0-3000 |
0-4000 |
0-5000 |
0-6000 |
| Accuracy |
+/-1% Full Scale |
| Output Voltmeter |
4 digit digital meter displays TRMS value of output voltage |
| Range |
0-18 V |
0-36 V |
0-30 V |
0-24 V |
0-20 V |
| Accuracy |
+/-2% Full Scale |
Cables
Interconnect: 20' (6 m)
Power and ground cables are not included
Dimensions & Weights
| Cart |
SXCT15-2000 |
SXCT30-3000 |
SXCT25-4000 |
SXCT20-5000 |
SXCT17-6000 |
| Length |
48" (1220 mm) |
69" (1740 mm) |
50" (1280 mm) |
67" (1702 mm) |
67" (1702 mm) |
| Width |
25" (650 mm) |
32" (813 mm) |
29" (737 mm) |
36" (914 mm) |
36" (914 mm) |
| Height |
42" (1060 mm) |
52" (1320 mm) |
37" (946 mm) |
52" (1321 mm) |
52" (1321 mm) |
| Weight |
1500 lbs (680 kgs) |
1700 lbs (770 kgs) |
2200 lbs (998 kgs) |
2850 lbs (1291 kgs) |
2850 lbs (1291 kgs) |
Note: Other models are available upon request
