IEC IEEE Standard Hv Cable Reliability Test System Thermal Cycling Test Equipment

Name: IEC IEEE Standard Hv Cable Reliability Test System Thermal Cycling Test Equipment
Brand: Sansion Power Electric Co., Ltd.
Price: 17.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Sansion
Certification:	CE/CNAS/ISO9001

Detail Information

Place of Origin:

China

Brand Name:

Sansion

Certification:

CE/CNAS/ISO9001

Model NO.:

SXCT

Max Diameter Of Workpiece:

<500mm

Mass Scope Of Workpiece:

<900kg

Type:

Cable Heat Cycling Test System

Maxcapacity:

<1000KN

Accuracy Grade:

0.5

Load Way:

Electronic Load

Loading Method:

Dynamic Load

Display:

Digital

Control:

Manual Control

Weight:

1000-2000Kg

Power Source:

AC220V

Oil Cylinder Position:

Without

Frequency:

50 Or 60 Hz

Transport Package:

Plywood Case

Specification:

ISO9001 SGS

Trademark:

Sansion

Origin:

China

HS Code:

9030332000

Production Capacity:

100 Units/Month

Highlight:

High Light

Highlight:

Hv Cable Reliability Test System

Thermal Cycling Test Equipment for Cables

Trading Information

Minimum Order Quantity:

1 Set

Price:

US $6,000-28,000 /

Packaging Details:

Plywood Case

Payment Terms:

L/C T/T

Supply Ability:

100 Units/Month

Product Description

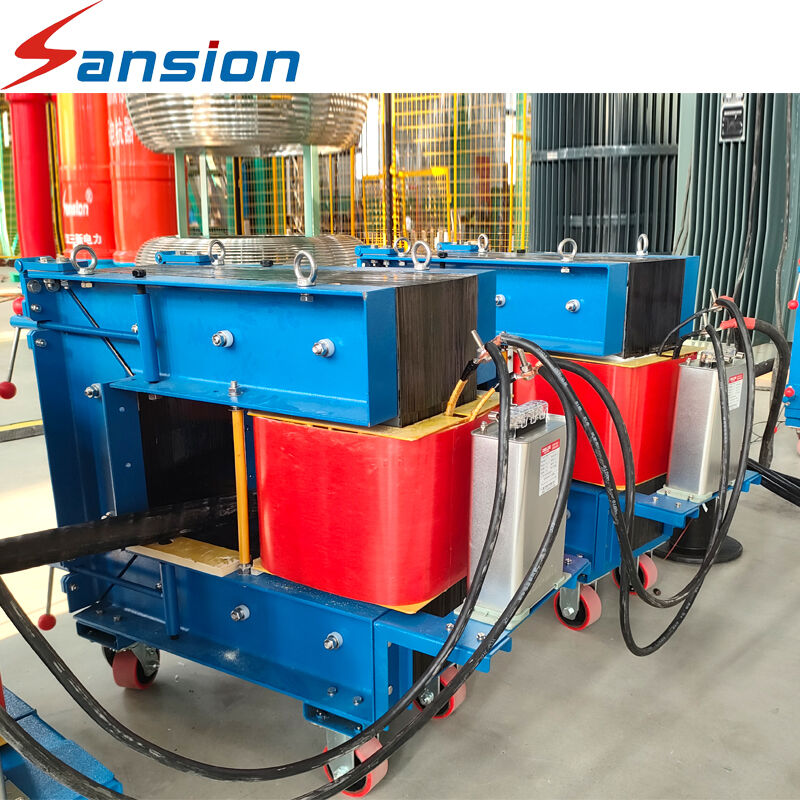

IEC IEEE Standard HV Cable Reliability Test System Thermal Cycling Test Equipment

HV Cable Reliability Test System Thermal Cycling Test Equipment for comprehensive cable testing applications.

Testing Applications

Conducting cable type tests in full compliance with international standards (IEC, IEEE, IPCEA, AEIC, VDE, EDF)
Performing inductive heating on cable samples and accessories
Applying combined electrical stresses (DC/AC high voltage and impulse voltage) to heated cables during testing
Enabling comprehensive testing through integrated options or ancillary equipment

System Sizing & Configuration

The appropriate rating and design for specific applications are determined by key factors including conductor type and cross-section, insulation type and thickness, cable length under test, ambient and test temperatures, and required time to reach target test temperature.

Sansion Power Electric Co., Ltd. Offers:

Indoor/Outdoor Units: Flexible installation options
Automated Controls: For precise and repeatable operation
Regulator Options: Choose between SCR (Electronic) or Variable Autotransformer control
Integrated Temperature Regulation: Ensures stable test conditions
Scalable Testing: Capability expanded for multi-unit setups
Capacitive Compensation: Reduces input power demand and regulator size
High-Current Models: Standard offerings extend up to 6000 Amps

Technical Specifications

MODEL	SXCT15-2000	SXCT30-3000	SXCT25-4000	SXCT20-5000	SXCT17-6000
INPUT KVA	30/36	90/108	100/120	100/120	100/120
Frequency	50 or 60 Hz (one must be specified)
OUTPUT Voltage 60 Hz	0-18 V	0-36 V	0-30 V	0-24 V	0-20 V
Voltage 50 Hz	0-15 V	0-30 V	0-25 V	0-20 V	0-17 V
Current	0-2000 A	0-3000 A	0-4000 A	0-5000 A	0-6000 A
DUTY CYCLE	continuous

Digital Metering

Parameter	SXCT15-2000	SXCT30-3000	SXCT25-4000	SXCT20-5000	SXCT17-6000
Output Current Range	0-2000	0-3000	0-4000	0-5000	0-6000
Current Accuracy	+/-1% Full Scale
Output Voltage Range	0-18 V	0-36 V	0-30 V	0-24 V	0-20 V
Voltage Accuracy	+/-2% Full Scale

Dimensions & Weights

Component	SXCT15-2000	SXCT30-3000	SXCT25-4000	SXCT20-5000	SXCT17-6000
Cart Length	48" (1220 mm)	69" (1740 mm)	50" (1280 mm)	67" (1702 mm)	67" (1702 mm)
Cart Width	25" (650 mm)	32" (813 mm)	29" (737 mm)	36" (914 mm)	36" (914 mm)
Cart Height	42" (1060 mm)	52" (1320 mm)	37" (946 mm)	52" (1321 mm)	52" (1321 mm)
Cart Weight	1500 lbs (680 kgs)	1700 lbs (770 kgs)	2200 lbs (998 kgs)	2850 lbs (1291 kgs)	2850 lbs (1291 kgs)

Note: Power and ground cables are not included. Other models are available upon request.
