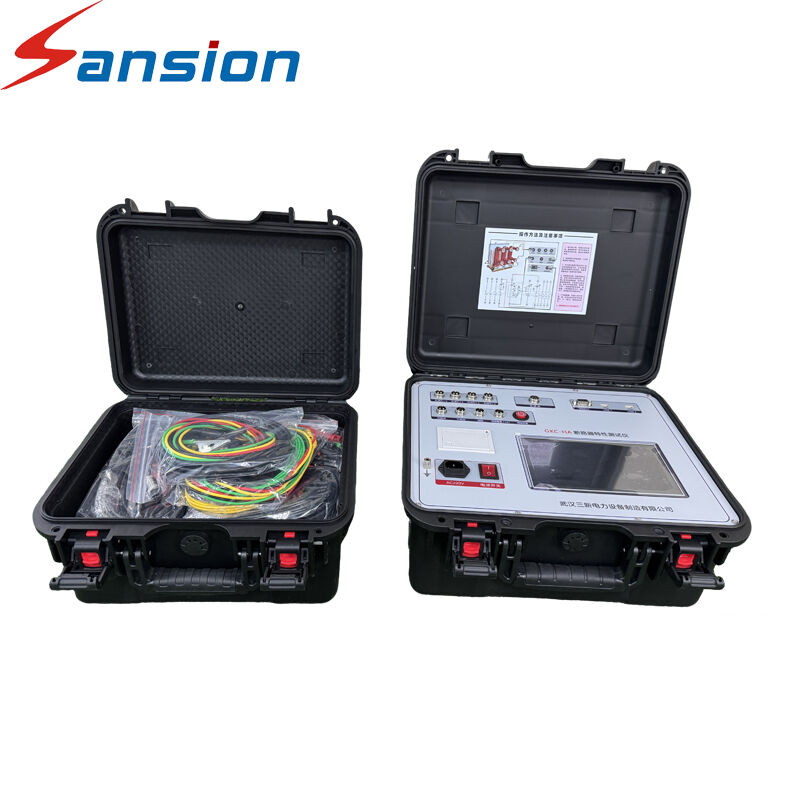

Portable Circuit Breaker Characteristic Tester Machine
SXGK series High Voltage Circuit Breaker Timing Analyzer is designed to test the dynamic characteristics of various voltage degree vacuum, SF6, oil, and other high voltage and low voltage circuit breakers.
Key Features
- 7-inch color large screen with window operating system and user-friendly interface
- Integrated operation power supply (DC20-265V, 15A) - no need for on-site secondary power supply
- Adjustable operating voltage for opening and closing coils with low-voltage operation test capability
- Universal speed sensor with easy installation
- Compatible with all models of SF6 switches, GIS combination devices, vacuum switches, and oil switches
- Comprehensive data and graphics acquisition upon switch activation
- Measures 12 metal contacts fracture and three circuits closing resistance
Technical Parameters
| Parameter |
Specification |
| Fracture Status Detection |
Automatically identifies opening/closing status of 12 fractures |
| Time Measurement Accuracy |
0.5% + (1% reading + 2 words) |
| Speed Measurement Accuracy |
1mm sensor: 1% reading + 1 word
0.1mm sensor: 2% reading + 1 word
0.5° angle sensor: ±(1% reading + 1 word) |
| Travel Measurement |
Angular velocity B1 sensor: 360°
Resolution: 0.5°
Accuracy: ±1% |
About Sansion Power Electric
Established in 2005, Sansion Power Electric has over 20 years of experience in R&D, manufacturing, and marketing of power electrical testing products. Our solutions are widely used in power electric, railroad, energy conservation, environment protection, water conservancy, petrochemical industry, aerospace, and other fields.
We maintain R&D departments, manufacturing workshops, HV testing laboratories, and quality control departments with over 80 employees including 20 technical engineers. All products conform to ISO9001 quality system certification and international IEC and Chinese state standards.
Certifications
Packing & Delivery
Customer Visit
Frequently Asked Questions
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise with its own factory, self-produced and self-sold. Founded in 2005, we have twenty years of production experience with reliable production lines, test rooms, and R&D centers.
Q2: Whether the goods are in stock, can they be customized, and how long is the delivery time?
A: We make products to order according to customer requirements using the latest technology. Delivery time is typically within 10 working days.
Q3: Is the quality guaranteed?
A: We use imported components and conduct three quality inspections before shipment. Export products are packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: We offer free consulting service, one year warranty, and support through email communication, video calls, and on-site technical assistance to resolve any after-sales problems promptly.
Q5: What are the cooperative countries or regions?
A: Our products have been successfully exported to the United States, France, Brazil, Australia, Spain, Portugal, Oman, Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia, and other countries and regions.
